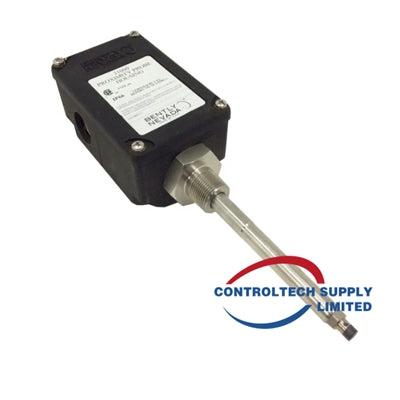

Bently Nevada Proximity Probe Housing Assemblies 21000-16-10-15-072-03-02

Description

To externally mount proximity probes, use one of these all-metal Proximity Probe Housing Assemblies:

• 21000 aluminum probe housing assembly

• 24701 stainless steel probe housing assembly

The 21000, 24701, and 164818 Proximity Probe Housing Assemblies consist of the following parts:

• A dome cover that screws into the body of the housing

• Threaded ports for conduit connections

• A probe sleeve of optional length

• O-rings

• A reverse mount proximity probe

• A thread seal

• Optional conduit fittings

• An optional standoff adapter

Proximity Probe Housing Assemblies

21000-AA-BB-CC-DDD-EE-FF

16 – 3300 XL 8mm probe

B: Probe Cable Length

• 10 – 1.0 m (39 in)

C: Standoff Adapter (Option C Dimension)

• 15 – Minimum length 1.5 in (38 mm)

D: Probe Penetration (Option D Dimension)

• 072 – 7.2 in

E: Fittings

• 03

• One 3/4-14 NPT plug

• One 3/4-14 to 1/2-14 NPT reducer

F: Mounting Thread

• 02 – 3/4-14 NPT
