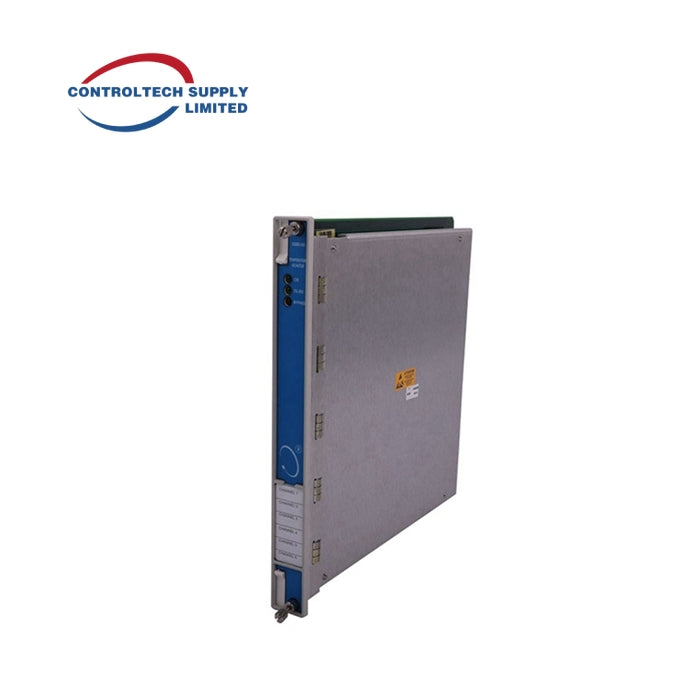

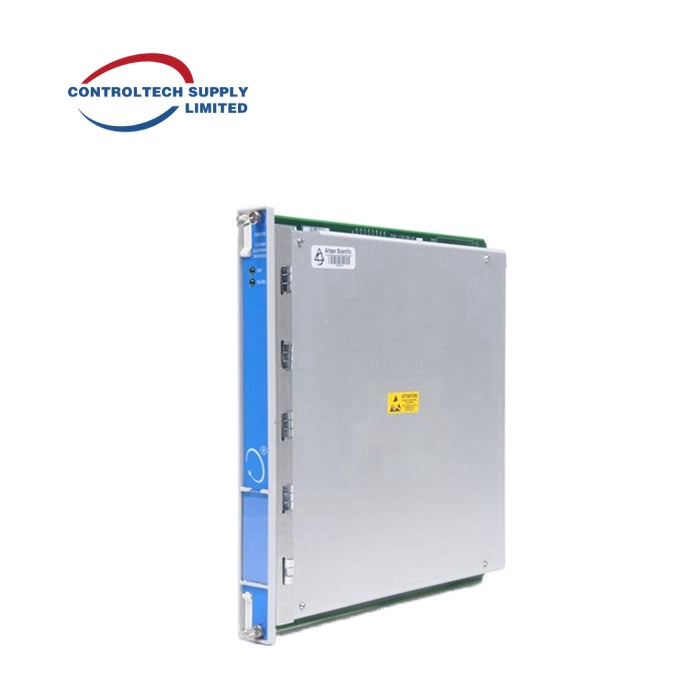

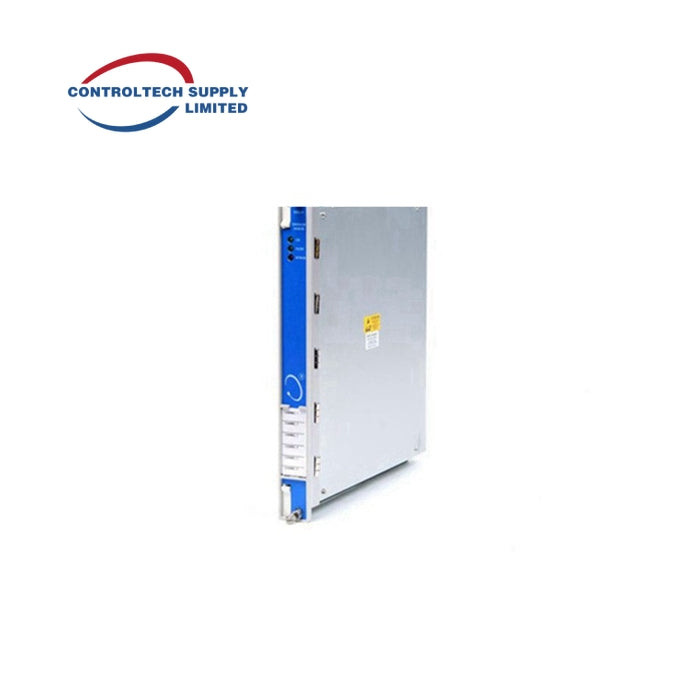

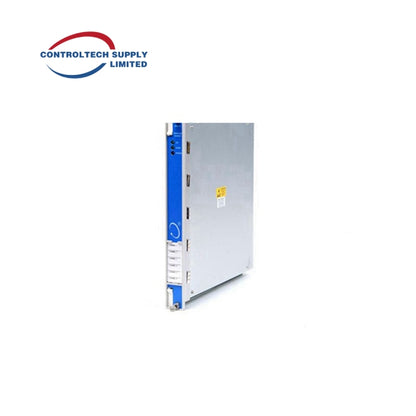

Bently Nevada 3500/91 EGD Communication Gateway Module

Product Description:

• Type: EGD Communication Gateway Module
• Purpose: Provides robust communication capabilities for transmitting 3500 rack-monitored values and statuses, enabling seamless integration with controllers compatible with the EGD protocol
• Applications: Widely used in industrial applications to ensure reliable communication and efficient data exchange in machinery monitoring systems

Technical Specifications:

• Power Consumption: 7.4 watts typical
• Data Types:
  • Producer Exchanges: Rack, Module, Channel, Data Value Status
  • Consumer Exchange: Group Reset, Group Trip Multiply, Group Alarm Inhibit, Group Special Alarm Inhibit
• Outputs: Front Panel LEDs (OK, TX/RX)
• Protocols Supported: EGD (version 2.01), Ethernet UDP/IP
• Communication Link: Ethernet, supporting 10-Mbps and 100-Mbps, in compliance with IEEE 802.3 and IEEE 802.3u standards
• Connection: RJ-45 jack for Ethernet 10BASE-T/100BASE-TX, MT-RJ jack for Ethernet 100BASE-FX

Environmental Limits:

• Operating Temperature: -30°C to +65°C (-22°F to +150°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 95%, noncondensing

Physical Dimensions:

• Main Module Dimensions: 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
• Weight: 0.79 kg (1.75 lbs.)

Rack Space Requirements:

• Main Module: Occupies 1 full-height front slot
• I/O Modules: Occupy 1 full-height rear slot
