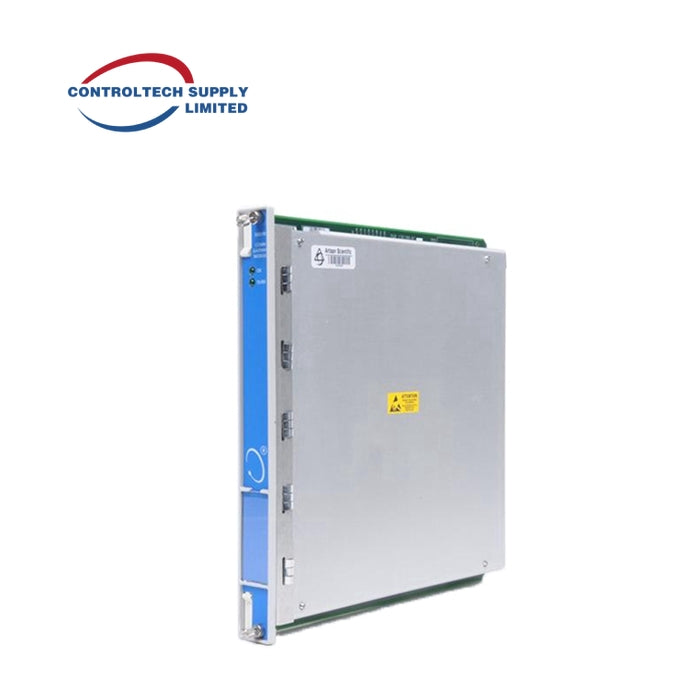

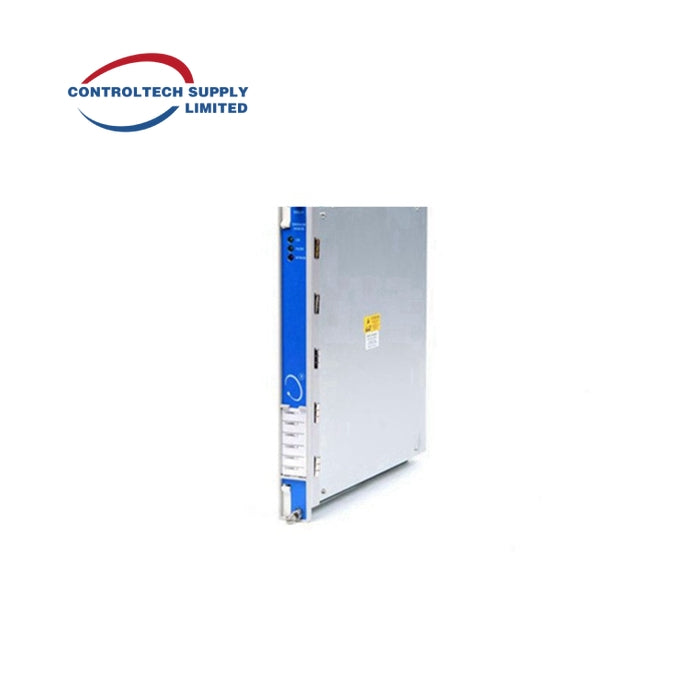

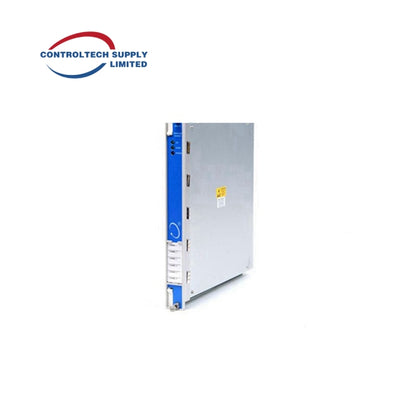

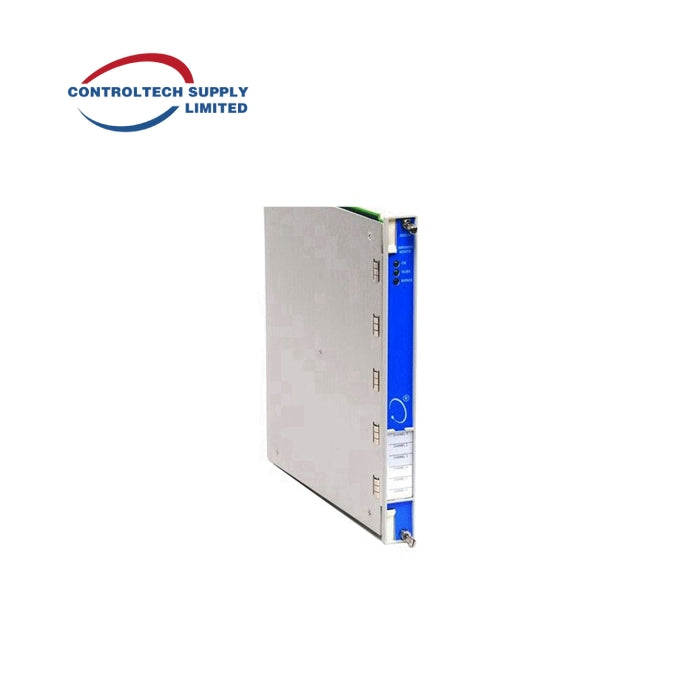

Bently Nevada 3500/65 172109-01 RTD/Isolated Tip TC I/O Module

Bently Nevada 3500/65 16-Channel Temperature Monitor

The Bently Nevada 3500/65 is a sophisticated 16-channel temperature monitoring solution designed to provide accurate temperature data for critical machinery. It accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC) inputs, processing them for comparison with user-programmable alarm setpoints. This monitor helps ensure machinery protection by detecting temperature deviations early, enabling predictive maintenance and reducing risk of equipment failure.

Environmental Limits

• Operating Temperature: -30°C to +65°C (-22°F to +150°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)

Physical Dimensions

• Main Module Dimensions (Height x Width x Depth):
  241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)

• Weight: 0.91 kg (2.0 lbs.)

• I/O Modules Dimensions (Height x Width x Depth):
  241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)

• Weight: 0.45 kg (1.0 lb.)

Rack Space Requirements

• Main Module: 1 full-height front slot
• I/O Modules: 1 full-height rear slot
