Bently Nevada
194 in stock

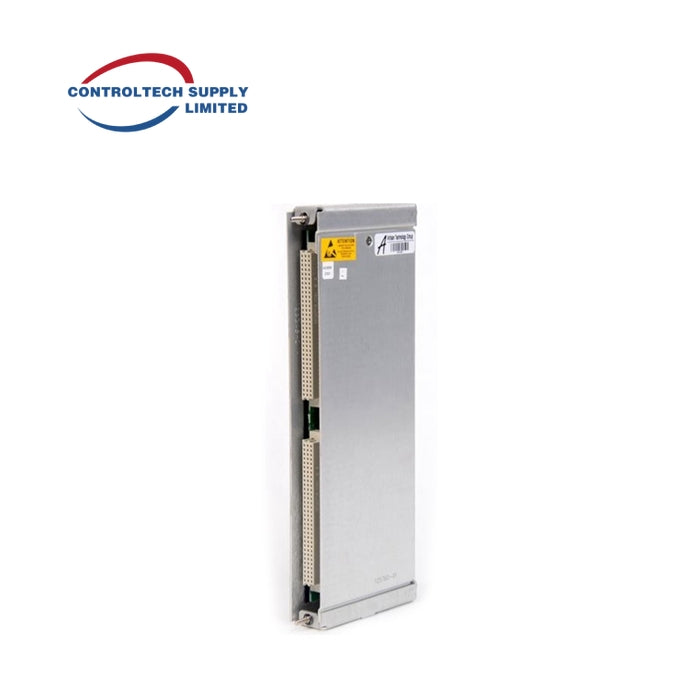

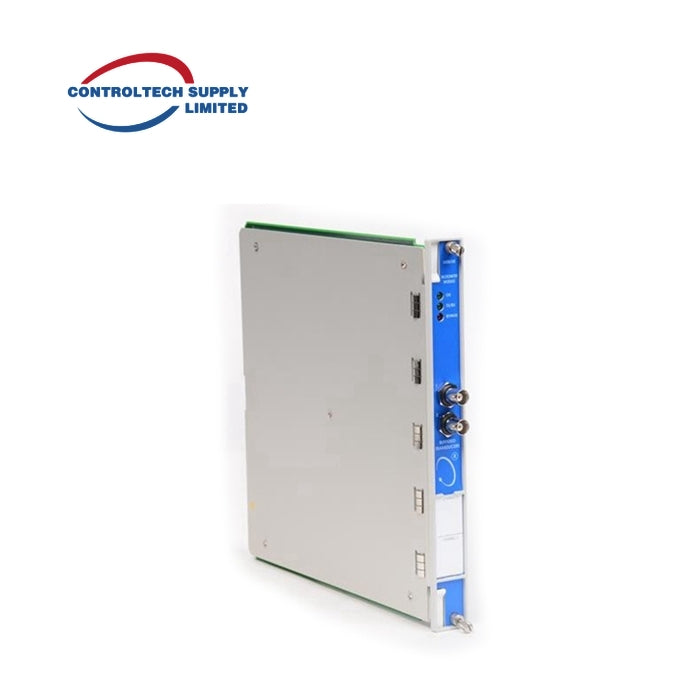

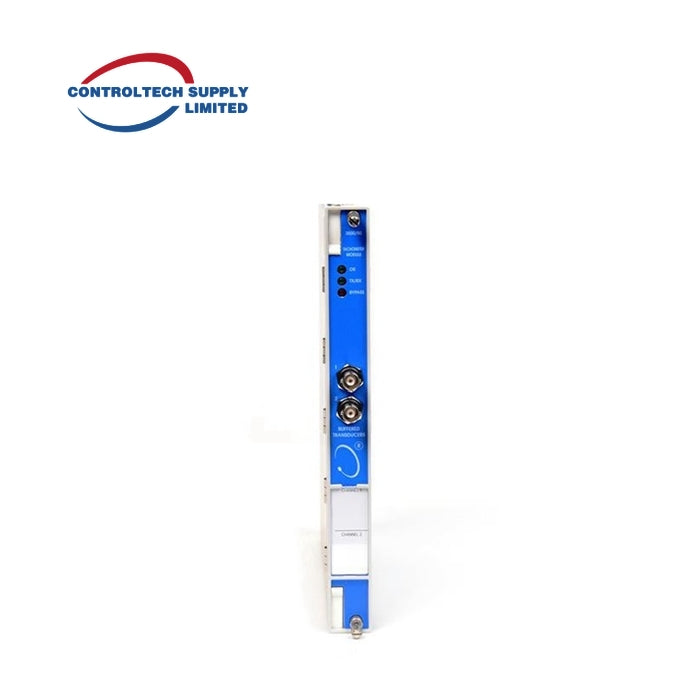

Bently Nevada 3500/50 133388-02 Tachometer Module
Bently Nevada 3500/50 133388-02 Tachometer Module
Manufacturer: Bently Nevada
Product No.: 3500/50 133388-02
Product Type: Tachometer Module
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Description of 3500/50 Tachometer Module
The 3500/50 Tachometer Module is a two-channel module designed to receive input from proximity probes or magnetic pickups (with some exceptions) to measure shaft rotational speed, rotor acceleration, or rotor direction. It compares these measurements against user-configurable alarm setpoints and triggers alarms when thresholds are exceeded.
Environmental Limits
-
Operating Temperature:
- With Internal/External Termination I/O Module: -30°C to +65°C (-22°F to +150°F)
- With Internal Barrier I/O Module (Internal Termination): 0°C to +65°C (32°F to +150°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Humidity: 95%, non-condensing
Spares
| Part Number | Description |
|---|---|
| 133388-02 | 3500/50 Tachometer Module |
| 133442-01 | I/O Module with Internal Terminations |
| 136703-01 | Discrete Internal Barrier I/O Module with Internal Terminations |
| 133434-01 | I/O Module with External Terminations |
| 133450-01 | TMR I/O Module with External Terminations |
| 134938-01 | 3500/50 Tachometer Manual |
| 134130-01 | 3500/50 Firmware IC |
| 04425545 | Grounding Wrist Strap (single use only) |
| 04400037 | IC Removal Tool |
| 00580434 | Connector Header, Internal Termination, 8-position, Green |
| 00580436 | Connector Header, Internal Termination, 6-position, Green |
| 00502133 | Connector Header, Internal Termination, 12-position, Blue |
