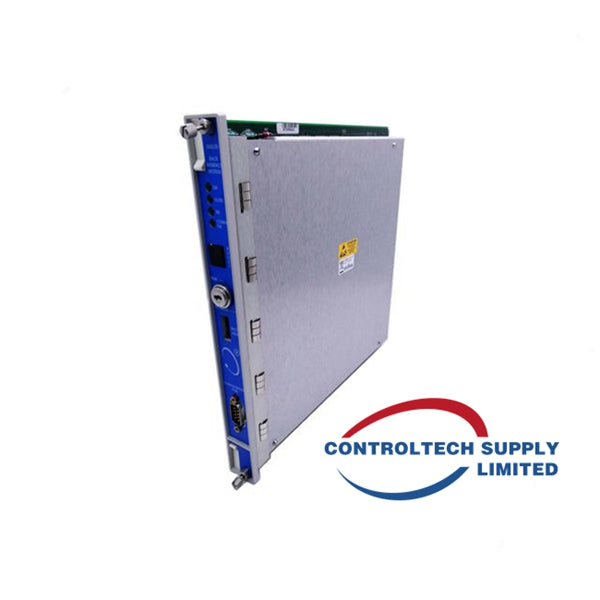

BENTLY NEVADA 3500/46M 176449-06 Hydro Monitor
BENTLY NEVADA 3500/46M 176449-06 Hydro Monitor
Manufacturer: Bently Nevada
Product No.: 176449-06
Product Type: Hydro Monitor
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
3500/46M Hydro Monitor
The 3500/46M Hydro Monitor is a versatile four-channel instrument designed to accept inputs from various sensors, including proximity, seismic, dynamic pressure, and air gap sensors. The monitor processes these signals to provide measurements for vibration, position, and both static and dynamic pressure. It compares the conditioned signals with user-configured alarm thresholds. The Hydro Radial Vibration channels combine shaft gap movement with NX amplitude to offer measurements that can trigger alarms in case of shear-pin failure.
Physical Specifications
- Monitor Module (Main Board) Dimensions: 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
- Monitor Module Weight: 0.91 kg (2.0 lb)
- I/O Module Dimensions: 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
- I/O Module Weight: 0.20 kg (0.44 lb)
Spare Parts
| Spare Part | Description |
|---|---|
| 176449-06 | 3500/46M Hydro Monitor |
| 144403-01 | 3500/46M Hydro Monitor User Guide |
| 140471-01 | Prox/Velom I/O Module with Internal Terminations |
| 140482-01 | Prox/Velom I/O Module with External Terminations |
| 169459-01 | Multimode Prox/Velom I/O Module with Internal Terminations |
| 169459-02 | Multimode Prox/Velom I/O Module with External Terminations |
| 169715-01 | Multimode Positive Input I/O Module with Internal Terminations |
| 169715-02 | Multimode Positive Input I/O Module with External Terminations |
| 00561941 | Prox/Velom and Multimode Prox/Velom I/O Module ten-pin connector shunt |
| 00580434 | Euro Style connector header 8-pin (For use on I/O modules with internal terminations) |
| 00580432 | Euro Style connector header 10-pin (For use on I/O modules with internal terminations) |
| 166M2389 | Connector header Push-in-spring type (Alternative for PN 00580434) |
| 166M2388 | Connector header Push-in-spring type (Alternative for PN 00580432) |
