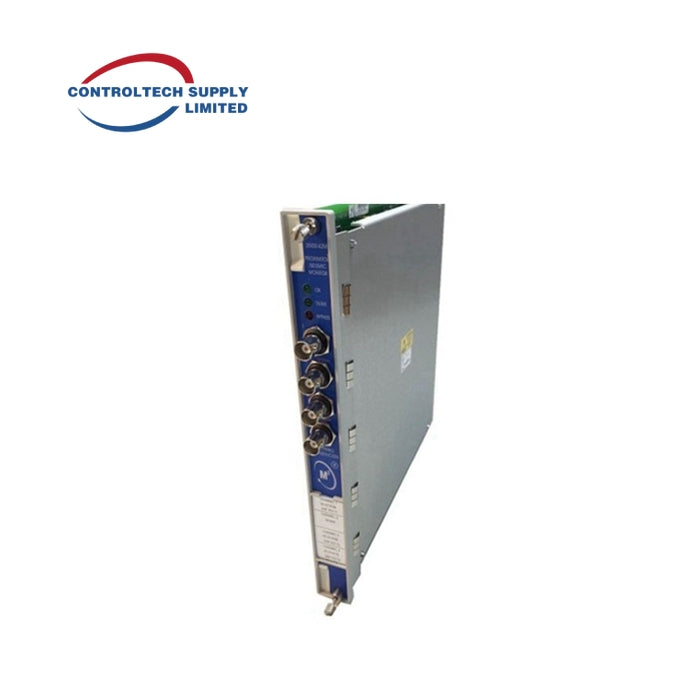

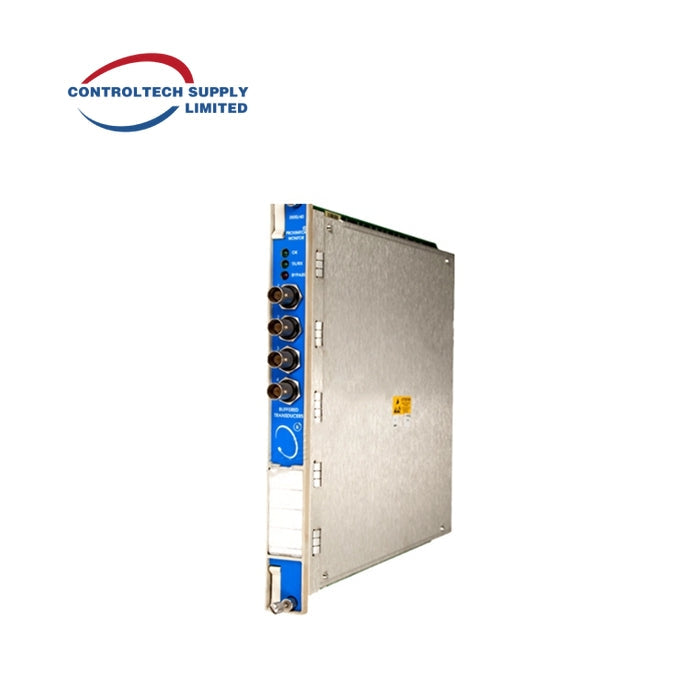

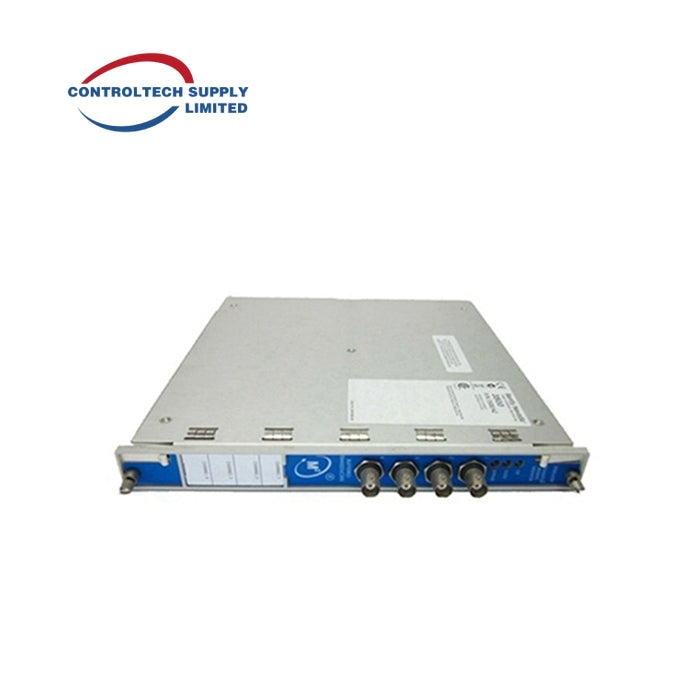

Bently Nevada 3500/40M Proximitor Monitor

Bently Nevada 3500/40M Proximitor Monitor

Brand: Bently Nevada
Product Type: Proximitor Monitor
Payment:T/T, Western Union
Shipping Port:Jinhua China
Lead Time:1-3 Working Days
Condition: Brand New And 100% Original
Warranty: 12 months

Bently Nevada 3500/40M Proximitor Monitor

The 3500/40M Proximitor Monitor is a four-channel module that accepts inputs from Bently Nevada proximity transducers, conditions the signals to provide vibration and position measurements, and compares these signals with user-programmable alarms. It can be configured using the 3500 Rack Configuration Software to monitor several functions, such as:

  • Radial vibration
  • Eccentricity
  • REBAM (Radial Expansion Beam Measurement)
  • Thrust position
  • Differential expansion

Primary Purpose:

  • Machinery Protection: Continuously compares monitored parameters against configured alarm setpoints to trigger alarms.
  • Machine Information: Provides essential data for both operational and maintenance personnel.

Specifications:

  • Inputs:
    • Accepts from 1 to 4 proximity transducer signals.
  • Power Consumption: 7.7 Watts, typical.
  • Input Impedance: 10 kΩ (for Proximitor and acceleration inputs).

Outputs:

  • Front Panel LEDs:
    • OK LED: Indicates proper operation.
    • TX/RX LED: Indicates communication with other modules in the 3500 rack.
    • Bypass LED: Indicates when the module is in Bypass Mode.

Environmental Limits:

  • Operating Temperature:
    • With Internal/External Termination I/O Module: -30°C to +65°C (-22°F to +150°F).
    • With Internal Barrier I/O Module (Internal Termination): 0°C to +65°C (32°F to +150°F).
  • Storage Temperature: -40°C to +85°C (-40°F to +185°F).
  • Humidity: 95%, non-condensing.

Physical Dimensions:

  • Monitor Module (Main Board):
    • Dimensions: 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
    • Weight: 0.91 kg (2.0 lb)
  • I/O Modules (non-barrier):
    • Dimensions: 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
    • Weight: 0.20 kg (0.44 lb)
  • I/O Modules (barrier):
    • Dimensions: 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in)
    • Weight: 0.46 kg (1.01 lb)
