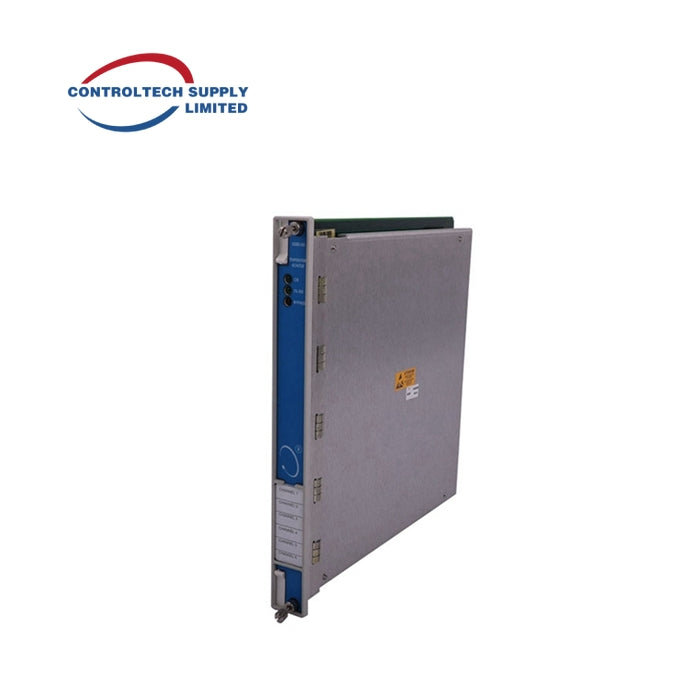

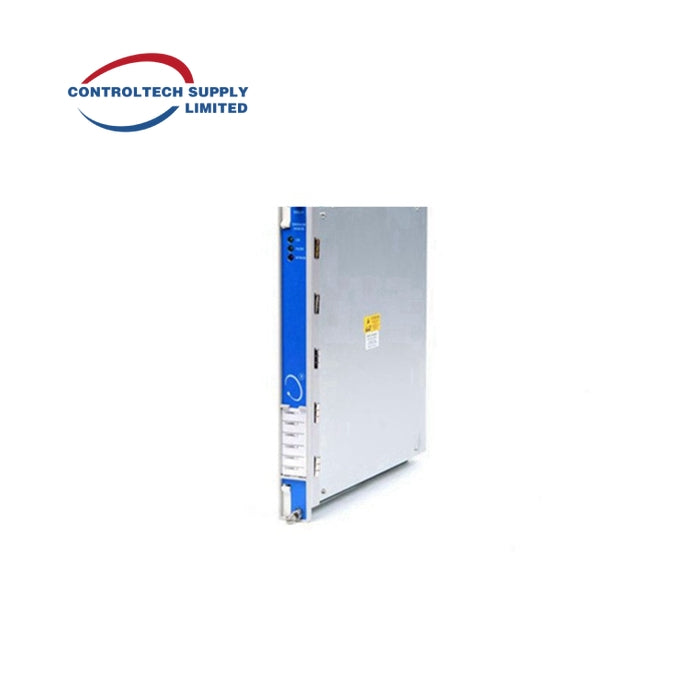

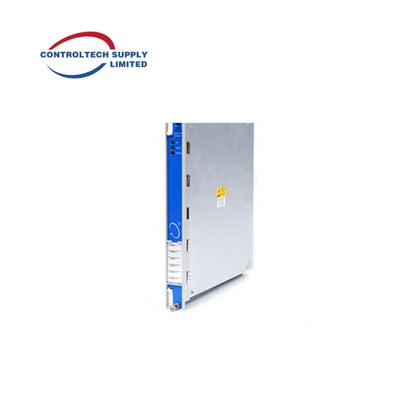

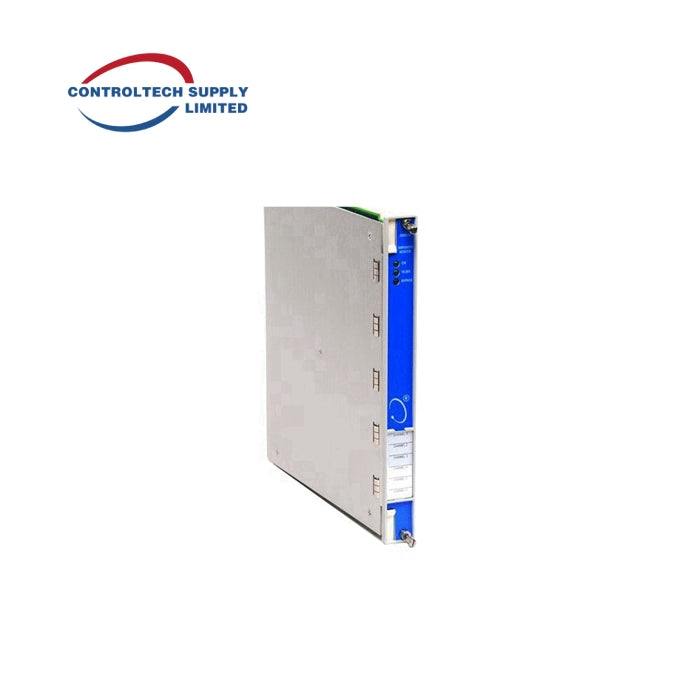

Bently Nevada 3500/34 TMR Relay Module
The 3500/34 TMR Relay Module is designed for applications requiring high availability, comparable to safety instrumented systems, providing reliable machinery protection within the 3500 Series.
Description
- High Availability: Supports Triple Modular Redundant (TMR) configurations with 2-out-of-3 voting for inputs.
- Independent Relays: Features three independent relays driving a single relay output for enhanced reliability.
- Alarm Drive Logic: Programmed using AND/OR logic to suit specific application needs, utilizing alerts and dangers from any monitor channel.
- Configuration Software: Uses 3500 Rack Configuration Software for tailored setup.
Specifications
-
Inputs
- Power Consumption: 9.6 Watts (typical).
-
Outputs
-
LED Indicators:
- OK LED: Illuminates when the module is functioning properly.
- TX/RX LED: Flashes to indicate proper communication within the rack.
- CH ALARM LEDs: Illuminates during alarm states.
-
Relays:
- Type: Three double-pole, double-throw (DPDT) relays connected as single-pole, single-throw (SPST).
-
LED Indicators:
-
Environmental Limits
- Operating Temperature: -30 °C to +65 °C (-22 °F to +150 °F).
- Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F).
- Humidity: Up to 95%, non-condensing.
-
Physical Dimensions and Weight
- Relay Module Dimensions: 120.4 mm x 24.6 mm x 241.8 mm (4.74 in x 0.97 in x 9.52 in).
- Relay Module Weight: 0.34 kg (0.74 lb.).
- I/O Module Dimensions: 241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in).
- I/O Module Weight: 0.5 kg (1.0 lb.).
