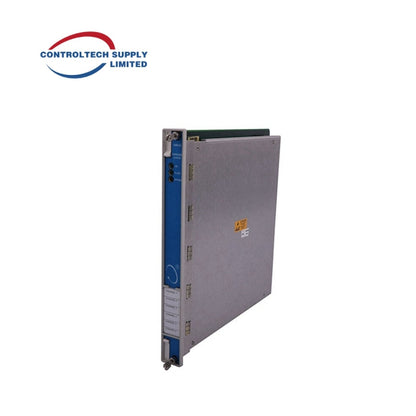

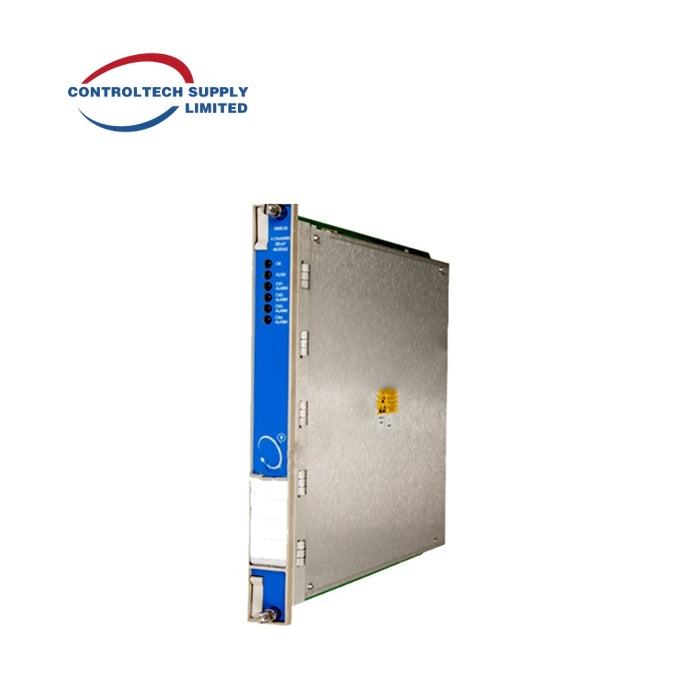

Bently Nevada 3500/32 125712-01 4-Channel Relay Module

Description

The BENTLY NEVADA 125712-01 is a high-quality spare relay module designed to work with Bently Nevada industrial monitoring systems. This 4-channel relay module offers reliable performance in controlling and protecting equipment in demanding industrial environments. It is designed to operate seamlessly within systems that require precise relay functionality for system control, alarms, and shutdown functions. The module is engineered to withstand extreme temperature ranges and provides excellent durability and reliability.

Environmental Limits

• Operating Temperature: -30 °C to +65 °C (-22 °F to +150 °F)

• Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)

• Humidity: 95%, non-condensing

This relay module is built to function effectively in harsh industrial environments with fluctuating temperatures and humidity levels. It ensures continued operation and reliability under various environmental conditions.

Physical Specifications

• Main Module:
  Dimensions: 241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in)
  Weight: 0.7 kg (1.6 lb.)

• I/O Module:
  Dimensions: 241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
  Weight: 0.4 kg (1.0 lb.)

The module's compact size allows for easy installation and integration into existing systems, and the weight ensures solid construction for long-term operational stability.
