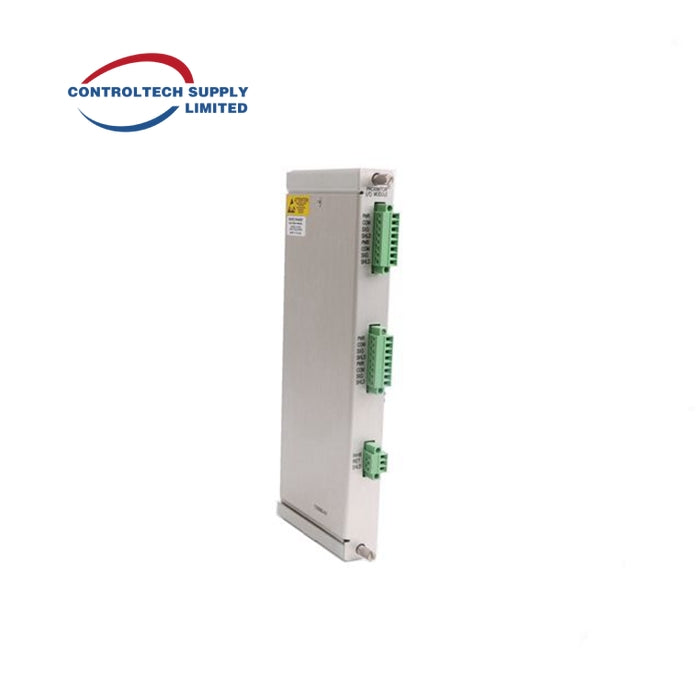

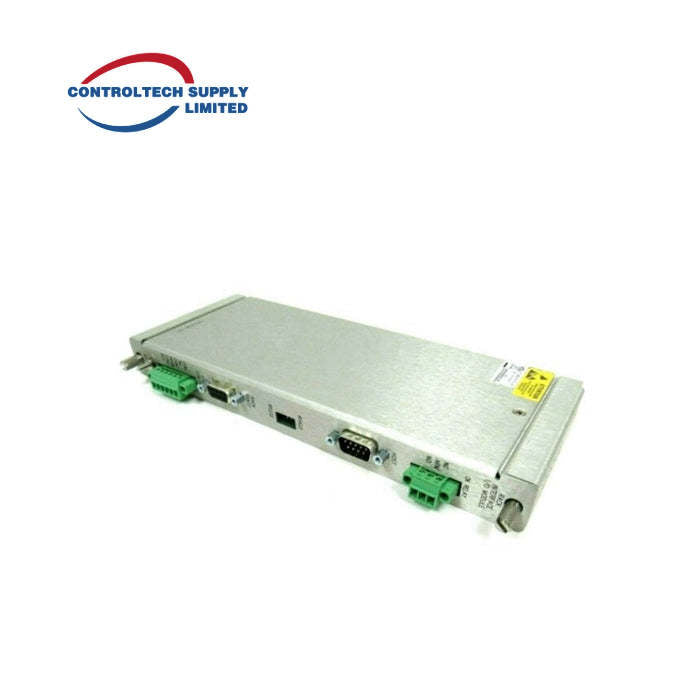

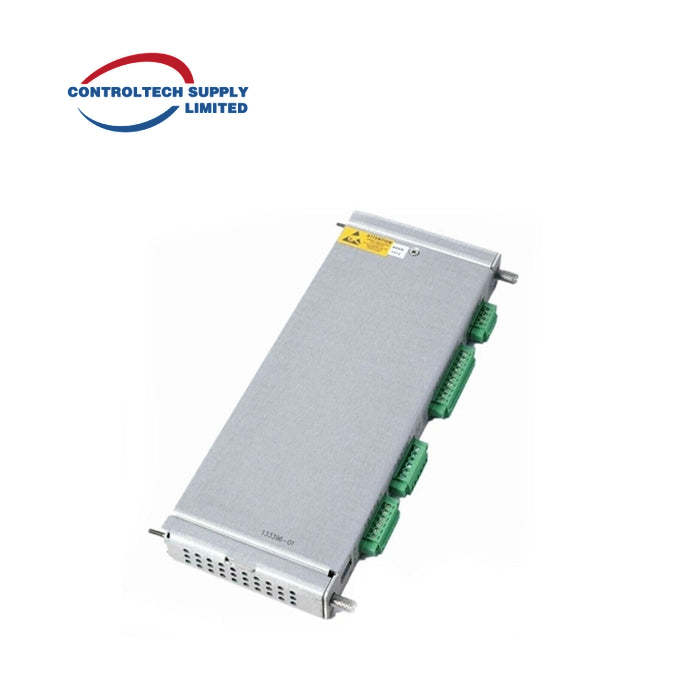

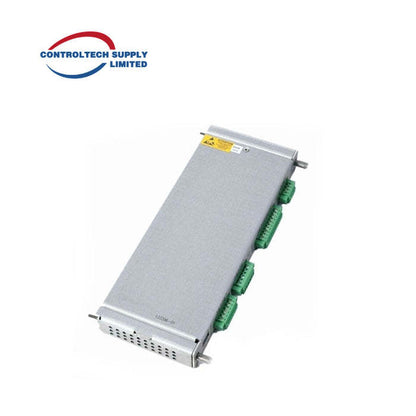

BENTLY NEVADA 3500/25 126648-02 Isolated Keyphasor I/O Module

Description

The BENTLY NEVADA 3500/25 126648-02 Isolated Keyphasor I/O Module is designed for use with the 3500 series machinery protection system. This module provides external terminations and is used to monitor and process Keyphasor signals, essential for determining shaft speed and rotational position in machinery. The 3500/25 Isolated Keyphasor I/O Module ensures high accuracy and isolation for signals, enhancing the reliability and performance of the monitoring system in demanding industrial environments.

Environmental Limits

• Operating Temperature:

• -30°C to +65°C (-22°F to +150°F) when used with Keyphasor I/O Module other than the Internal Barrier version.

• 0°C to +65°C (32°F to +150°F) when used with Keyphasor Internal Barrier I/O Module (Internal Termination).

• Storage Temperature: -40°C to +85°C (-40°F to +185°F)

• Humidity: 95%, non-condensing

Physical Specifications

• Main Module

• Dimensions: 119.9 mm x 24.4 mm x 256.5 mm (4.72 in x 0.96 in x 10.10 in)

• Weight: 0.34 kg (0.76 lbs.)

• I/O Module

• Dimensions: 241.3 mm x 24.4 mm x 103.1 mm (9.50 in x 0.96 in x 4.06 in)

• Weight: 0.46 kg (1.01 lbs.)

This Isolated Keyphasor I/O Module is an integral part of the 3500 series, providing isolation and accurate signal processing for machinery protection applications.
