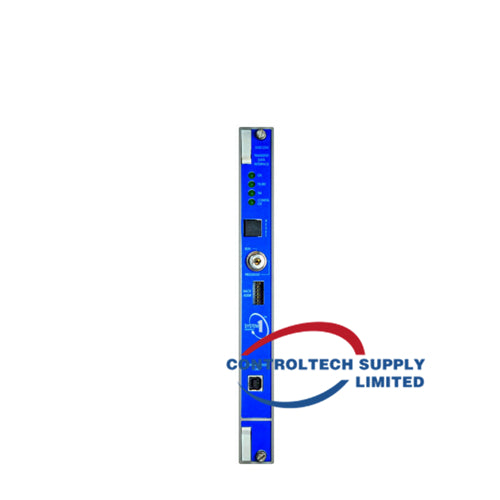

Bently Nevada 3500/22-01-02-00 Transient Data Interface Module

3500/22M Transient Data Interface Module

Description
The 3500/22M Transient Data Interface (TDI) links the 3500 monitoring system to compatible software, such as System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software. This multifunctional TDI combines the capabilities of a 3500/20 Rack Interface Module (RIM) with a communication processor like TDXnet for efficient data collection.

Physical Characteristics

• TDI Module Dimensions (Height x Width x Depth): 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
• TDI Module Weight: 0.91 kg (2.0 lbs)
• I/O Modules Dimensions (Height x Width x Depth): 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
• I/O Modules Weight: 0.20 kg (0.44 lbs)
• Rack Space Requirements:
  • TDI Module: 1 full-height front slot
  • I/O Modules: 1 full-height rear slot

Ordering Information
Part Number: 3500/22-01-02-00

• A: Transient Data Interface Type
  • 01: Standard (use for standard monitoring applications)
• B: I/O Module Type
  • 02: 100Base-FX (Fiber Optic) Ethernet
• C: Agency Approval
  • 00: None
