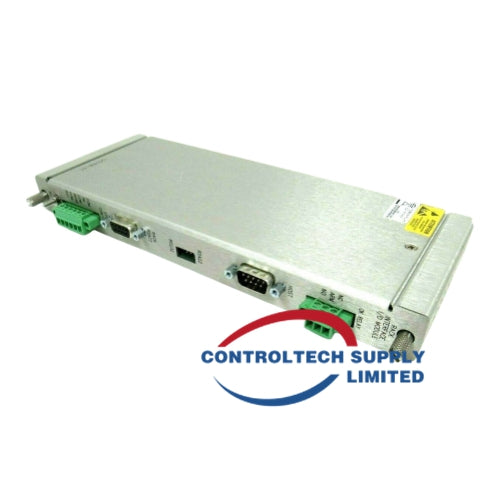

Bently Nevada 3500/20 125768-01 RIM I/O Module
Bently Nevada 3500/20 125768-01 RIM I/O Module
Manufacturer: Bently Nevada
Product No.: 3500/22 125768-01
Product Type: RIM I/O Module
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
3500/20 Rack Interface Module
Description:
The Rack Interface Module (RIM) is the primary interface to the 3500 rack. It supports a proprietary protocol used to configure the rack and retrieve machinery information. The
RIM must be located in slot 1 of the rack (next to the power supplies).
Product Description:
The model number 3500/20-AA-BB-CC includes the following options:
| Option | Description |
|---|---|
| A: Rack Interface Type | 01 - Standard RIM (for standard monitoring applications) 02 - TMR RIM (for applications requiring Triple Modular Redundant Configuration) |
| B: Type of I/O Module | 01 - I/O module with built-in modem 02 - I/O module with RS232/RS422 interface |
| C: Agency Approval Option | 00 - None 01 - CSA/NRTL/C |
Spares:
| Spare Part | Description |
|---|---|
| 125744-02 | Standard Rack Interface Module |
| 125744-01 | TMR Rack Interface Module |
| 135031-01 | RIM I/O Module with Modem Interface |
| 125768-01 | RIM I/O Module with RS232/RS422 Interface |
| 125760-01 | Data Manager I/O Module |
| 04425545 | Grounding Wrist Strap (single use) |
| 00801286 | Real-Time Clock IC |
| 128755-01 | Firmware IC (for PWA 125744-01 Rev P or later, or for PWA 125744-02 Rev N or later) |
| 00580441 | Connector Header, Internal Termination, 3-position, Green |
| 00580436 | Connector Header, Internal Termination, 6-position, Green |
| 129768 | RIM Operation and Maintenance Manual |
