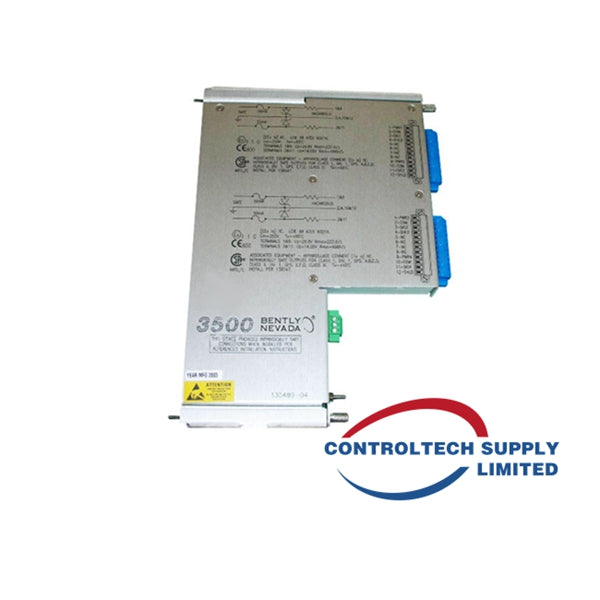

BENTLY NEVADA 3500/04 136719-01 | Earthing I/O Module

Description

The BENTLY NEVADA 3500/04 136719-01 is an Earthing I/O Module designed to provide reliable ground fault detection and protection for Bently Nevada 3500 series machinery monitoring systems. This module ensures that the system is properly earthed, preventing electrical hazards and maintaining the safety and stability of critical machinery operations. It is ideal for use in industrial environments requiring robust protection against electrical faults.

Temperature

Temperature Accuracy

• Accuracy: ±1 °C at +25 °C, ±15 °C over the operating temperature range

Phase Accuracy

• Phase Accuracy: -11° at 10 kHz

Channel Parameters

• Um (Maximum Voltage): 250 V

• Uo (Operating Voltage): 7.71 V

• Io (Operating Current): 89.17 mA

• Co (Capacitance): 9.3 μF

• Lo (Inductance): 4.55 mH

• Po (Power): 132.41 mW

Physical Information

• Internal Barrier I/O Module

• Dimensions (Height x Width x Depth): 241.3 mm x 24.4 mm x 163.1 mm (9.50 in. x 0.96 in. x 6.42 in.)

• Weight: 0.46 kg (1.01 lb)

• Internal Barrier Earthing Module

• Dimensions (Height x Width x Depth): 241 mm x 24.4 mm x 103.1 mm (9.50 in. x 0.96 in. x 4.06 in.)

• Weight: 0.201 kg (0.443 lb)
