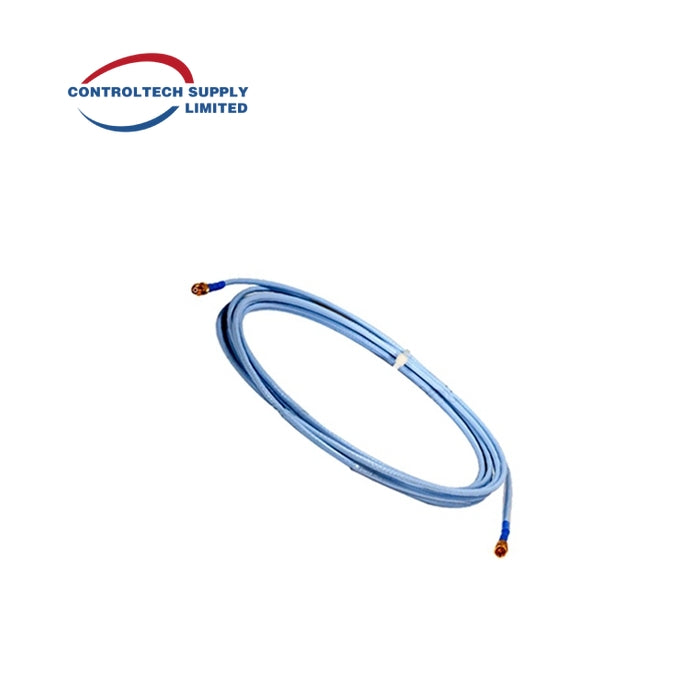

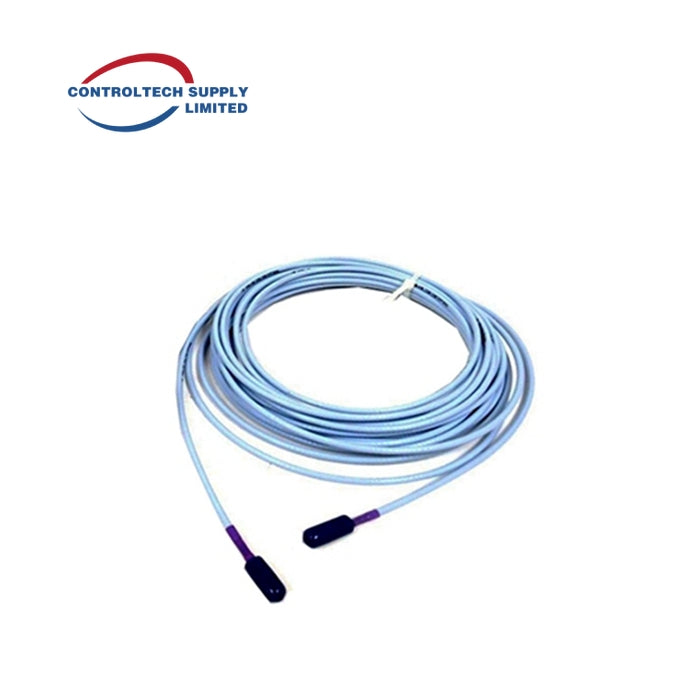

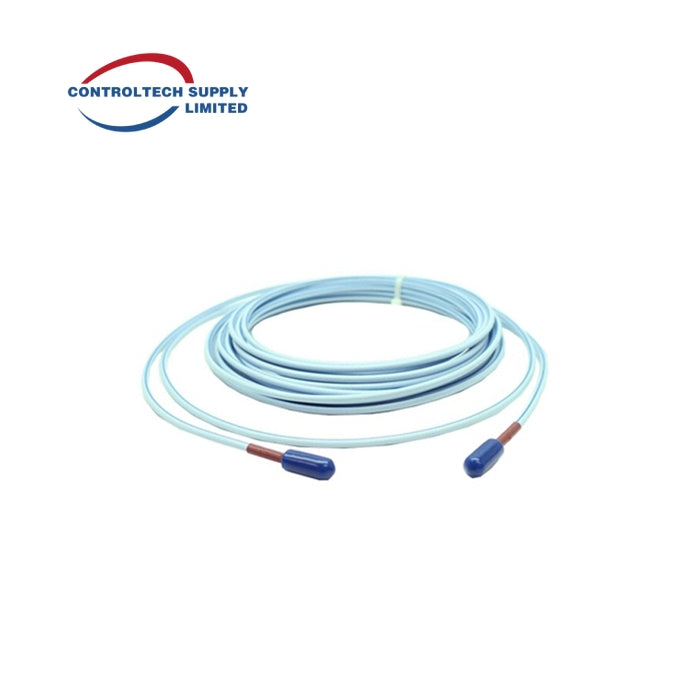

Bently Nevada 330930-045-00-05 | 3300 NSv Extension Cable

3300 XL NSv Proximity Transducer System

The 3300 XL NSv Proximity Transducer system is designed for use with:

• Centrifugal air compressors
• Refrigeration compressors
• Process gas compressors
• Other machines with tight installation requirements

The system includes:

• 3300 NSv Probe
• 3300 NSv Extension Cable
• 3300 XL NSv Proximitor Sensor

Environmental Limits

• Probe Temperature Range

  • Operating Temperature: -52°C to +177°C (-62°F to +351°F)
  • Storage Temperature: -52°C to +177°C (-62°F to +351°F)
  • Note: Exposing the probe to temperatures below -34°C (-30°F) for a sustained period may cause premature failure of the pressure seal.

• Extension Cable Temperature Range

  • Operating and Storage Temperature: -52°C to +177°C (-62°F to +351°F)

• Proximitor Sensor Temperature Range

  • Operating Temperature: -52°C to +100°C (-62°F to +212°F)
  • Storage Temperature: -52°C to +105°C (-62°F to +221°F)

• Relative Humidity: 100% condensing, non-submersible when connectors are protected. Tested to IEC 68-2-3 damp heat.

3300 NSv Extension Cable 330930-AAA-BB-CC
