Bently Nevada
721 in stock
BENTLY NEVADA 330130-040-02-00 3300 XL 8 mm Proximity Transducer System
BENTLY NEVADA 330130-040-02-00 3300 XL 8 mm Proximity Transducer System
Manufacturer: Bently Nevada
Product No.: 330130-040-02-00
Product Type: Proximity Transducer System
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
3300 XL 8 mm Proximity Transducer System
Description
The 3300 XL 8 mm Proximity Transducer System includes:
- 3300 XL 8 mm probe

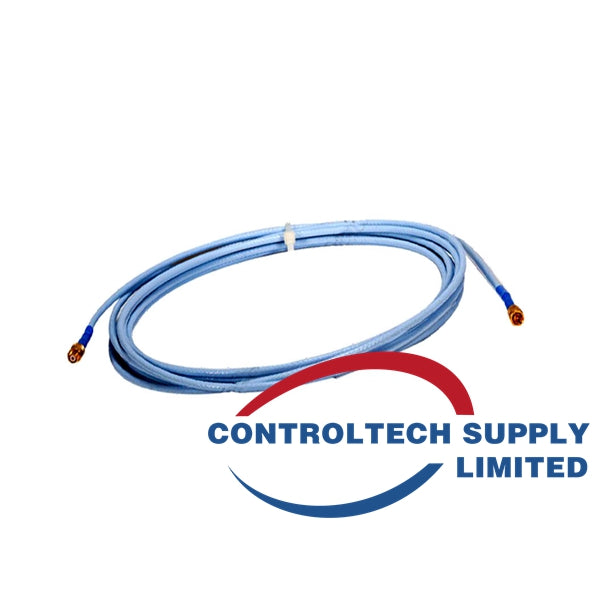

- 3300 XL extension cable
- 3300 XL Proximitor Sensor
The system generates an output voltage proportional to the distance between the probe tip and the observed conductive surface. It is capable of measuring:
- Static values (position)
- Dynamic values (vibration)
Primary Applications
- Vibration and position monitoring on fluid-film bearing machines
- Keyphasor reference and speed measurements
Nominal Probe DC Resistance
Resistance measured from the center conductor to the outer conductor of the probe:
| Probe Length (m) | RPROBE (Ω) |
|---|---|
| 0.5 | 7.45 ± 0.50 |
| 1.0 | 7.59 ± 0.50 |
| 1.5 | 7.73 ± 0.50 |
| 2.0 | 7.88 ± 0.50 |
| 3.0 | 8.17 ± 0.50 |
| 5.0 | 8.73 ± 0.50 |
| 9.0 | 9.87 ± 0.50 |
Nominal Extension Cable DC Resistance
Resistance measured from center conductor to center conductor of the extension cable:
| Extension Cable Length (m) | RCORE (Ω) |
|---|---|
| 3.0 | 0.66 ± 0.10 |
| 3.5 | 0.77 ± 0.12 |
| 4.0 | 0.88 ± 0.13 |
| 4.5 | 0.99 ± 0.15 |
| 6.0 | 1.32 ± 0.21 |
| 7.0 | 1.54 ± 0.23 |
| 7.5 | 1.65 ± 0.25 |
| 8.0 | 1.76 ± 0.26 |
| 8.5 | 1.87 ± 0.28 |
