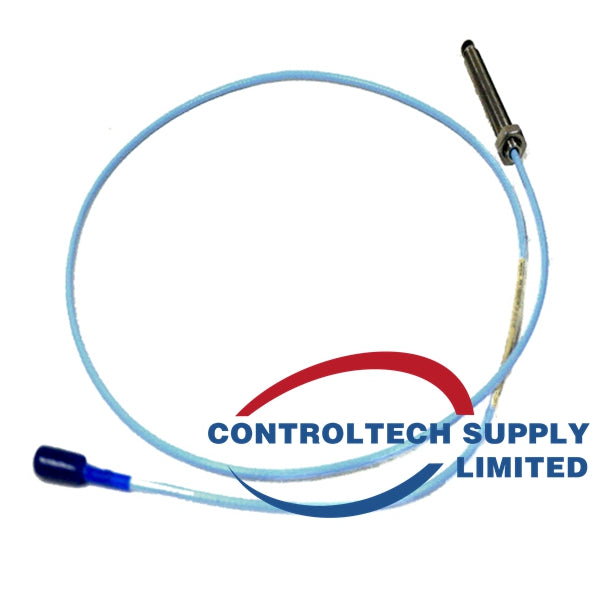

330101-00-08-10-02-00 3300 XL 8 mm Proximity Transducer System
Description
The 3300 XL 8 mm Proximity Transducer System consists of:
- One 3300 XL 8 mm probe
- One 3300 XL extension cable
- One 3300 XL Proximitor Sensor
The system provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. It can measure both:
- Static values (position)
- Dynamic values (vibration)
Applications
- Vibration and position measurements on fluid-film bearing machines
- Keyphasor reference and speed measurements
Key Features
- Advanced performance in eddy current proximity transducer systems
- Complies with API 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability (standard 5-meter system)
- Complete interchangeability of probes, extension cables, and Proximitor sensors
- No need for matching or bench calibration of individual components
Electrical Specifications
Proximitor Sensor Input
- Compatible with 3300-series 5 mm and 3300 XL 8 mm Proximity Probe and Extension Cable
Power Requirements
-
Voltage Range:
- -17.5 Vdc to -26 Vdc with non-incendive circuit (as per installation drawing 140979)
- -23 Vdc to -26 Vdc with barriers
- Maximum Consumption: 12 mA
- Note: Operation at more positive voltage than -23.5 Vdc may result in reduced linear range
Supply Sensitivity
- Less than 2 mV change in output voltage per volt change in input voltage
Output Resistance
- 50 Ω
