Bently Nevada
619 in stock

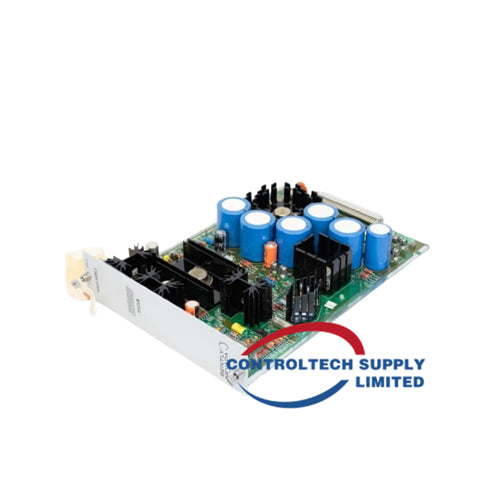

Bently Nevada 3300/12 AC Power Supply
Bently Nevada 3300/12 AC Power Supply
Manufacturer: Bently Nevada
Product No.: 3300/12
Product Type: AC Power Supply
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Description
The 3300/12 AC Power Supply provides reliable, regulated power to up to 12 monitors and their associated transducers. No additional power supply is needed within the same rack. This power supply is installed in the left-most position (position 1) of a 3300 rack and converts 115 Vac or 220 Vac input into DC voltages used by the monitors in the rack. It comes with a line noise filter as a standard feature.
Environmental Limits
- Operating Temperature: 0°C to +65°C (+32°F to +150°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Relative Humidity: Up to 95%, non-condensing
Model Options: 3300/12-AXX-BXX-CXX
| Option | Description |
|---|---|
| A: Input Voltage Option | 01 - 95-125 Vac 50/60 Hz 02 - 190-250 Vac 50/60 Hz (Note: Input Voltage Option is field-changeable. The ordering information only determines how the unit is shipped from the factory.) |
| B: Power Input Module Option | 20 - Standard 22 - Internal Safety Barriers 23 - Spare supply only (No PIM) |
| C: Agency Approval Option | 00 - Not Required 01 - CSA/NRTL/C 02 - ATEX self-certification |
Spare Parts
| Part Number | Description |
|---|---|
| 161956-AXX-BXX-CXX | Power Input Module (PIM) Assembly - Dash options same as above |
| 01701500 | 250V, 1.5 A Fuse (A=01, C=00, 01) |
| 01703118 | 250V, 0.75 A Fuse (A=02, C=00, 01) |
| 01710512 | 250V, 2.50 A Fuse (A=01, C=02) |
| 01720007 | 250V, 1.25 A Fuse (A=02, C=02) |
| 147262-01 | Transformer Assembly |
| 147262-02 | Transformer Assembly with Internal Barriers |
