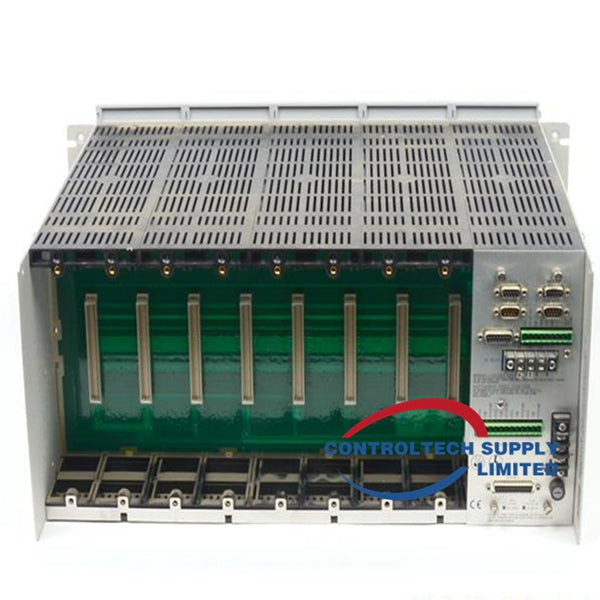

Bently Nevada 3300/05 Rack For 3300 Monitoring System

Description:

The 3300/05 rack is a durable, easily accessible, and expandable mounting medium for the 3300 Monitoring System. It accommodates a Power Supply, System Monitor, and various types of 3300 Monitors. Each monitor position in the rack includes a Signal Input/Relay Module position at the rear of the rack. The rack mainframe is made from injection-molded plastic with a conductive antistatic material to dissipate electrostatic discharge.

The rack bezel allows for the individual identification of machine/monitor points or loop numbers using factory-engraved bezel tags or clear plastic strips over paper tags. The modular design of the 3300 eliminates the need for internal wiring, enabling easy expansion to meet increasing monitoring needs.

• • Position 1: Reserved for the Power Supply.
  • Position 2: Reserved for the System Monitor.
  • Positions 3-14: Available for any combination of individual monitors.

• Ordering Information:

  • Rack Model: 3300/05-AXX-BXX-CXX

Option Descriptions

• A: Rack Size Option (SDI/DDI Compatible)

  • 2 1: 4-position
  • 2 2: 6-position
  • 2 3: 8-position
  • 2 4: 10-position
  • 2 5: 12-position
  • 2 6: 14-position
  • 2 7: 8-position 19-inch EIA mounting
  • 3 1: 4-position with internal barrier bar
  • 3 2: 6-position with internal barrier bar
  • 3 3: 8-position with internal barrier bar
  • 3 4: 10-position with internal barrier bar
  • 3 5: 12-position with internal barrier bar
  • 3 6: 14-position with internal barrier bar
  • 3 7: 8-position 19-inch EIA mounting with internal barrier bar

• B: Agency Approval Option

  • 0 0: Not Required
  • 0 1: CSA/NRTL/C
  • 0 2: ATEX self-certification
  • Note: ATEX approval requires the monitor rack to be installed in a weatherproof housing.

• C: Mounting Option

  • 0 0: Standard
  • 0 1: Used in weatherproof housing or for 19-inch EIA rack mounting.
  • Note: The weatherproof housing option provides EIA-type mounting holes on the rack front panel.

Accessories

• 101703-01: Blank Kit
