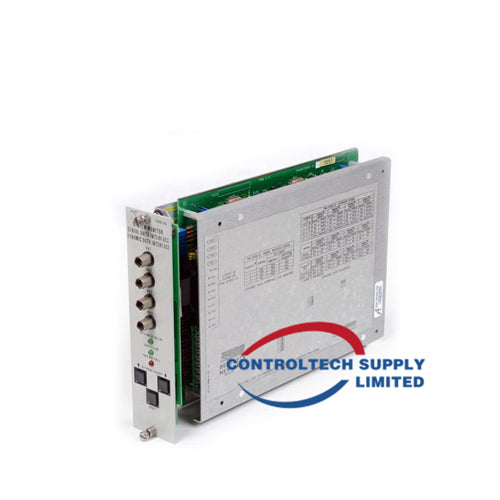

Bently Nevada 3300/03 System Monitor

Description

The System Monitor plays a crucial role in the 3300 monitor rack, providing the following key functions:

• Performs common tasks for all monitors in the rack, such as:

• Alarm setpoint adjustment

• Keyphasor® power, termination, conditioning, and distribution

• Alarm acknowledgement

• Connects all installed monitors to an external communications processor (sold separately) via STATIC and DYNAMIC data ports.

• Offers an optional Serial Data Interface (SDI) for communication of transducer and monitor data to process computers, digital/distributed control systems, programmable controllers, and other control and automation systems.

• Provides an optional Dynamic Data Interface (DDI) for communication of transducer and monitor data to compatible Bently Nevada machinery management software. This option may eliminate the need for an external communications processor depending on the data required.

Physical

• Rack Space Requirements: One rack position, installs only in position two (next to the Power Supply).

• Weight: 0.9 kg (2.2 lbs.).

Ordering Information

• System Monitor (3300/03-AXX-BXX)

• 00: None

• 01: CSA/NRTL/C

• 02: ATEX self-certification

• 01: Standard

• 02: Serial Data Interface

• 03: Dynamic Data Interface and Serial Data Interface

• A: Type

• B: Approvals Option

• Note: ATEX approval requires the monitor rack to be installed in a weatherproof housing.

• Upgrade Kit 143121

• 01: Basic to SDI upgrade

• 02: SDI to DDI upgrade

• 03: Basic to DDI upgrade
