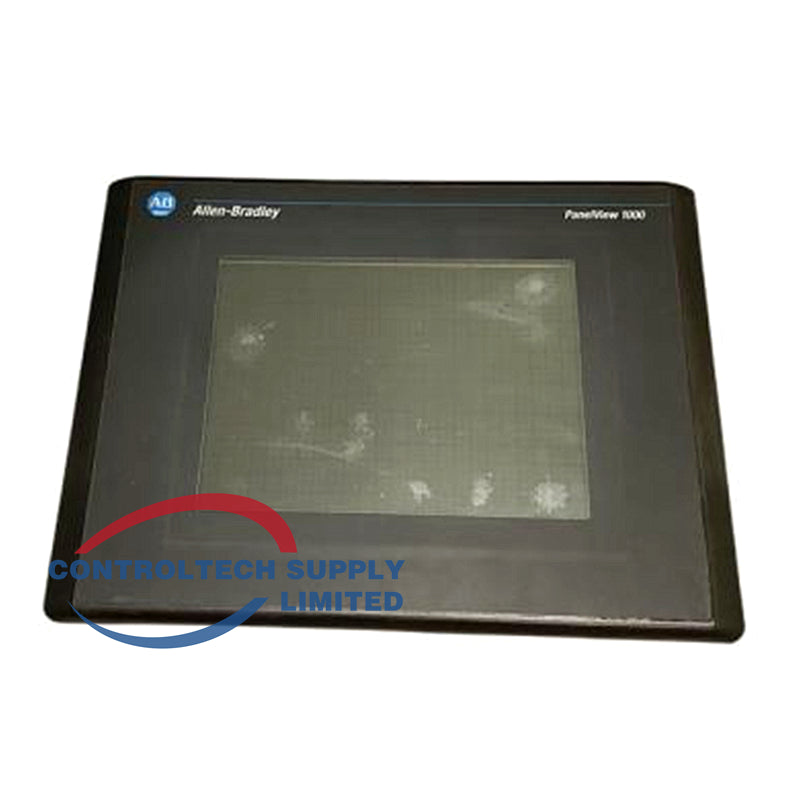

Allen-Bradley 2711-T10C20 is a PanelView 1000 Standard operator terminal featuring a 10.1-inch color touchscreen. It provides machine-level visualization and control with AC power and standard communication options for legacy Rockwell systems.
Technical Specs
Display: 10.1" color, 640 × 480 resolution class
Input: Touchscreen
Power: 85–264 VAC typical
Family: PanelView Standard 1000
Software: PanelBuilder 32
Enclosure: NEMA 12/13 or 4X capable
Key Features
Color touch interface for operator control
Compatible with PanelView 1000 series applications
AC-powered design
Suitable for retrofit and spare parts
FAQ
Screen? 10.1 inch color touch.
Family? PanelView Standard 1000.
Software? PanelBuilder 32.
Installation Guide
Prepare the panel cut-out.
Install and secure the terminal.
Connect power and communication cables.
Transfer the application file.
Test display, touch and network functions.
Selection Tips
Match communication type to the existing system.
Useful direct replacement for matching 2711-T10Cxx units.
Verify firmware and project compatibility before installation.
