Module Information:

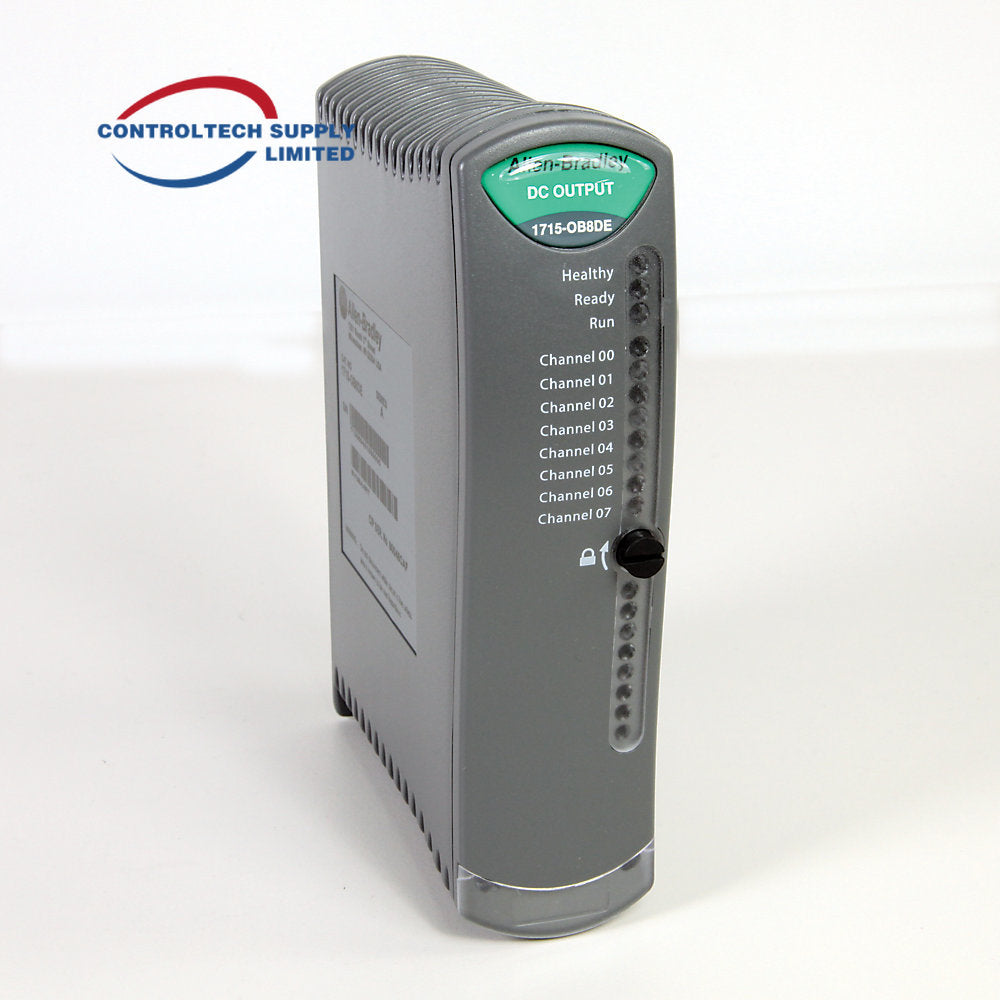

- Product Name: 1715-OB8DE Digital Output Module
Technical Specifications for 1715-OB8DE:
- Operating Voltage Range: 165 mA @ 18…32V DC
- Field Voltage Slew Rate (Max): 150 V/s
- De-energized Output Voltage Slew Rate (Max): 12 V/ms
- Energized Output Current Slew Rate (Max): 0.9 A/ms
- Power Dissipation:
- System: 3.0 W max
- Field Loop: 0.17 W per field loop
- Isolation Voltage: 50V (continuous)
- Weight:
- 1715-OB8DE Module: 290 g (10.23 oz)
- I/O Base Unit: 133 g (5 oz)
- Termination Assembly: 133 g (5 oz)
- Dimensions (H x W x D): 166 x 42 x 118 mm (6.5 x 1.625 x 4.625 in)
- Wire Size: Single 0.75…1.5 mm² (18…16 AWG) solid or stranded copper wire rated at 85 °C (185 °F) or greater
- Wiring Category: 2 - on signal ports
- Pilot Duty Rating: 16VA, 1.5 inrush
- North American Temperature Code: T4
- IEC Temperature Code: T4
- Enclosure Type: None (open-style)
Environmental Specifications:
- Operating Temperature: -25…60 °C (-13…140 °F)
- Maximum Surrounding Air Temperature: 70 °C (158 °F)
- Non-operating Temperature: -40…85 °C (-40…185 °F)
- Relative Humidity: 10…95% noncondensing
- Vibration: 2 g @ 10…500 Hz
- Shock (Operating and Non-operating): Various values based on mounting type
- Emissions: Class A (CISPR 11/IEC 61000-6-4)
- ESD Immunity: 6 kV contact discharges, 8 kV air discharges (IEC 61000-4-2)
- Radiated RF Immunity: Varying levels (IEC 61000-4-3)
- EFT/B Immunity: ±2 kV @ 5 kHz on signal ports (IEC 61000-4-4)
- Surge Transient Immunity: ±1 kV line-line (DM) and ±2 kV line-earth (CM) on signal ports (IEC 61000-4-5)
- Conducted RF Immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz…80 MHz (IEC 61000-4-6)
