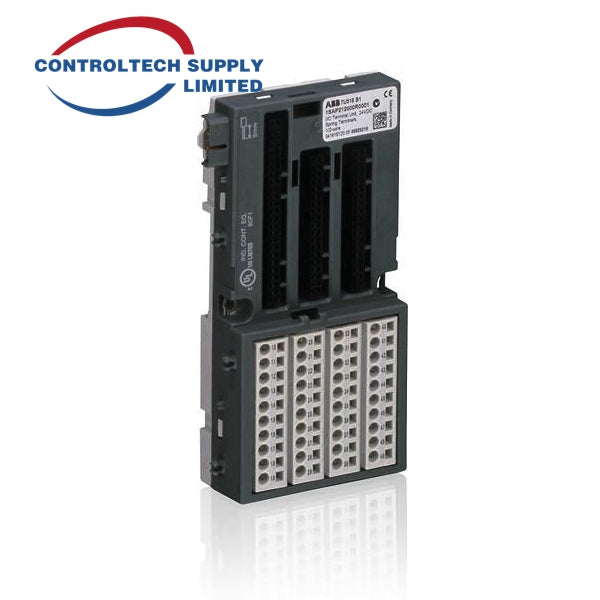

ABB TU515 is an I/O terminal unit for the ABB Ability System 800xA distributed control system (DCS). It is a versatile module that can be used to connect a wide variety of field devices to the DCS, including:
- Sensors
- Actuators
- PLCs
- Other field devices
Features and benefits
- I/O terminal unit for the ABB Ability System 800xA DCS
- Supports a variety of field devices, including sensors, actuators, PLCs, and other field devices
- High reliability and availability
- Wide operating temperature range
- NEMA 4/12 and IP66/67 environmental protection
- Multiple communication options
- Support for hot-swapping
- Compact size
- Easy to install and configure
Applications
- Process control
- Machine control
- Robotics
- Test and measurement
- Data acquisition
|
General info |
|
|
Article number |
3BSE021445R1 |
|
Type |
Redundant |
|
Connection |
Terminal block |
|
Channels |
8 |
|
Voltage |
50 V |
|
Mounting |
Horizontal |
|
Mounting detail |
55 º (131 ° F) |
|
Use with I/O |
AI845, AI880, AI880A and DP840 |
|
Process connections |
40 up to 8 I/O channels (2 terminals per channel) 4 Process power 20 Process power (0 V) |
|
Single/redundant I/O |
Redundant |
|
Detailed data |
|
|
Maximum current per I/O channel |
2 A |
|
Maximum current process connection |
5 A |
|
Acceptable wire sizes |
Solid: 0.2 - 4 mm² Stranded: 0.2 - 2.5 mm², 24 - 12 AWG Recommended torque: 0.5 - 0.6 Nm Stripping length: 7 mm |
|
Dielectric test voltage |
500 Va.c. |
|
Environment and certification |
|
|
CE mark |
Yes |
|
Electrical safety |
IEC 61131-2, UL 508 |
|
Hazardous Location |
C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
|
Marine certification |
ABS, BV, DNV-GL, LR, RS |
|
Protection rating |
IP20 according to IEC 60529 |
|
Corrosive atmosphere ISA-S71.04 |
G3 |
|
Climatic operating conditions |
0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2 |
|
Pollution degree |
Degree 2, IEC 60664-1 |
|
Mechanical operating conditions |
IEC/EN 61131-2 |
|
EMC |
EN 61000-6-4, EN 61000-6-2 |
|
Overvoltage categories |
IEC/EN 60664-1, EN 50178 |
|
Equipment class |
Class I according to IEC 61140; (earth protected) |
|
RoHS compliance |
EN 50581:2012 |
|
WEEE compliance |
DIRECTIVE/2012/19/EU |
|
Dimensions |
|
|
Width |
131 mm (5.16”) including connector, 124 mm (4.88”) edge to edge installed |
|
Depth |
64 mm (2.52”) including terminals |
|
Height |
186.5 mm (7.34”) including locking device |
|
Weight |
0.6 kg (1.3 lbs.) |
