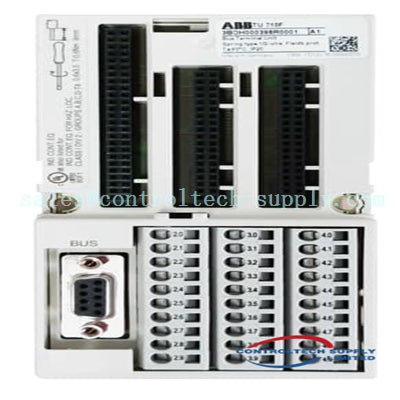

ABB TU 710F 3BDH000398R0001 Terminal Block

General info

• Article number: 3BDH000398R0001

• Signal specification: PROFIBUS

• Mechanics: S700

• Design: Spring type terminals

Detailed data

• Load current: 10 A

• Common mode voltage input: 24 VDC

• Supported wire size: 0.08 … 2.5 mm²

Environment and certification

• CE mark: Yes

• Electrical safety: EN 50178, IEC 61131-2, UL 61010-1, UL 61010-2-201

• Hazardous Location: cULus Class 1 Div 2

• Protection rating: IP20

• RoHS compliance: Directive 2011/65/EU

• WEEE compliance: DIRECTIVE/2012/19/EU

Dimensions

• Width: 68 mm

• Depth: 30 mm

• Height: 135 mm

• Weight: 0.19 kg
