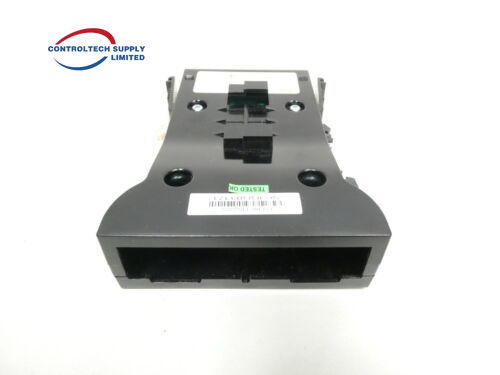

ABB PHCBRCPBA20000 Process Bus Adapter

Product Description

The ABB PHCBRCPBA20000 is a Process Bus Adapter designed for industrial automation systems. It serves as an interface module that enables communication between process-level devices and higher-level control systems, facilitating seamless data exchange and integration. This adapter is commonly used in applications requiring high-speed and reliable data transmission in substations and automation networks.

Technical Specifications

• Model Number: PHCBRCPBA20000

• Function: Process Bus Adapter

• Communication Protocol: IEC 61850-9-2 (Process Bus)

• Interface Type: Optical Ethernet (Fiber Optic)

• Data Transfer Rate: 100 Mbps / 1 Gbps

• Power Supply: 24V DC / 48V DC

• Power Consumption: ≤ 10 W

• Operating Temperature Range: -40°C to +70°C

• Storage Temperature Range: -50°C to +85°C

• Humidity Tolerance: 5% – 95% (non-condensing)

• EMC Compliance: IEC 61000-6-2, IEC 61000-6-4

• Mechanical Design: Compact, DIN-rail or panel mounting

• Weight: Approx. 500g

• Dimensions (HxWxD): 150 mm × 70 mm × 120 mm
