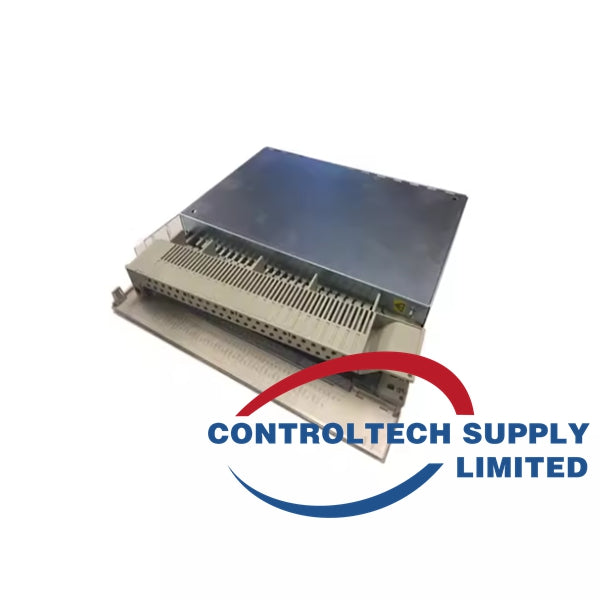

The ABB DO630 3BHT300007R1 is a 16-channel digital output board designed for industrial automation and process control applications.
Product details:
Product ID: 3BHT300007R1
ABB Type Designation: DO630
Catalog Description: DO630 Digital Output 16ch 250VAC
Dimensions:
Depth: 252 mm
Height: 273 mm
Width: 40 mm
Weight: 1.32 kg
Technical Specifications:
Number of Channels: 16
Output Voltage: 250 VAC
Output Current: Max. 2 A per channel
Isolation: Galvanically isolated between channels and field side
Short-circuit Protection: Yes
RoHS Compliance: Not fully compliant (exempted under specific categories)
Applications:
Industrial automation systems
Process control systems
Machine control
Data acquisition systems
Test and measurement setups
Additional Notes:
The DO630 belongs to the ABB S600 I/O product line, designed for use with various ABB control systems.
It features isolated channels, ensuring safe operation and preventing interference between different circuits.
The short-circuit protection provides robustness and minimizes damage in case of accidental overloads.
While not fully RoHS compliant, it may still be suitable for certain applications based on specific industry regulations and environmental considerations.
Compared to the DO620:
The DO630 has half the number of channels (16 vs. 32) but allows for higher output voltage (250VAC vs. 60VDC).
The DO630 uses galvanic isolation instead of opto-isolation, offering potentially better performance in some applications.
