Product Description

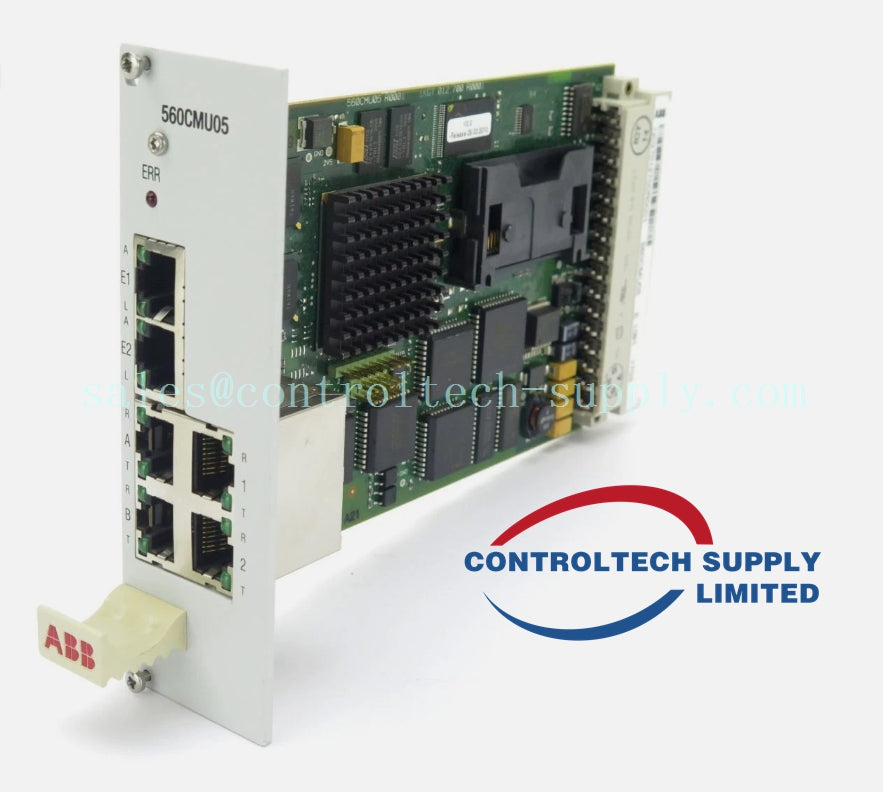

The ABB 560CMU05 is a central communication module designed for the ABB RTU560 Remote Terminal Unit (RTU) system. It serves as the core processor and communication hub, managing I/O data traffic, coordinating protocol handling, and facilitating seamless integration with SCADA systems, HMIs, intelligent electronic devices (IEDs), and subordinate devices. Equipped with multiple serial and Ethernet interfaces, this module supports high-speed data exchange and reliable communication in utility automation, substation control, and industrial environments. Its modular design fits into the RTU560 rack and enables flexible, scalable communication for critical automation applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 560CMU05 |
| Part Number | 1KGT008800R0001 / 1KGT012700R0001 |
| Product Type | Central Communication Module (RTU560) |
| System Compatibility | ABB RTU560 Remote Terminal Unit |
| Processor | 32-bit CPU |
| Memory | e.g., 128 MB RAM, 2 MB storage |
| Input Voltage | 24 V DC ± 10 % |
| Serial Interfaces | 4 × RS-232/RS-485 |
| Ethernet Interfaces | 2 × 10/100BaseT (RJ45) |
| USB Interface | Service/configuration access (where provided) |
| Data Transfer Rate (Ethernet) | Up to 100 Mbps |
| Data Transfer Rate (Serial) | Up to 38.4 kbps |
| Dimensions (L×W×H) | 14 cm × 20.3 cm × 5.8 cm |
| Weight | 0.21 kg |
| Operating Temperature | –25 °C to +70 °C (typical industrial range) |
| Storage Temperature | –40 °C to +85 °C |
| Mounting | RTU560 rack slots (modular) |
| Supported Protocols | RS-232/RS-485, Ethernet/IP (and others per configuration) |
| Typical Applications | Substation automation, utility SCADA, industrial communications |
