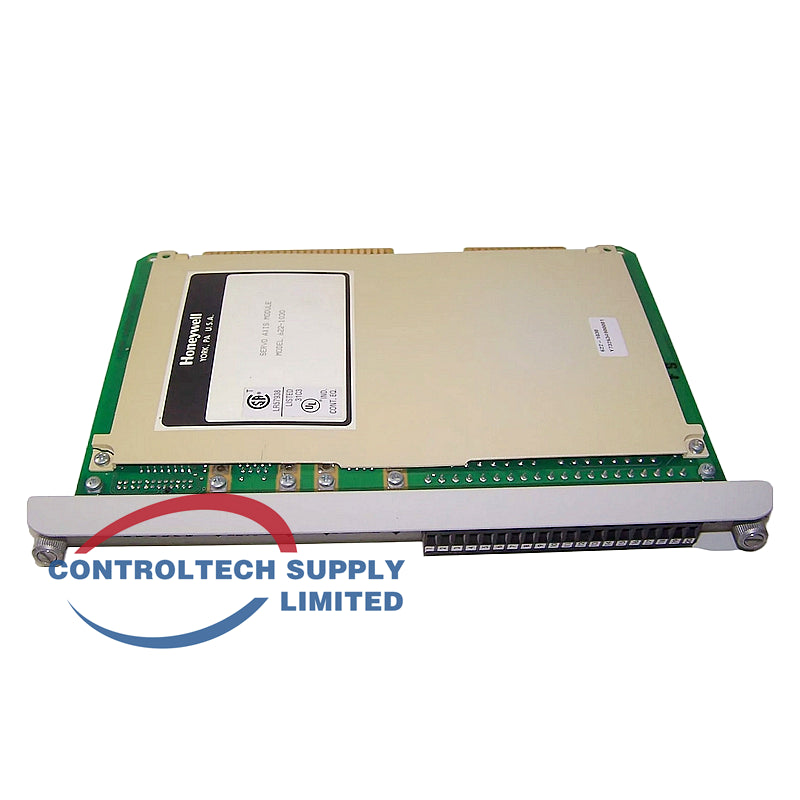

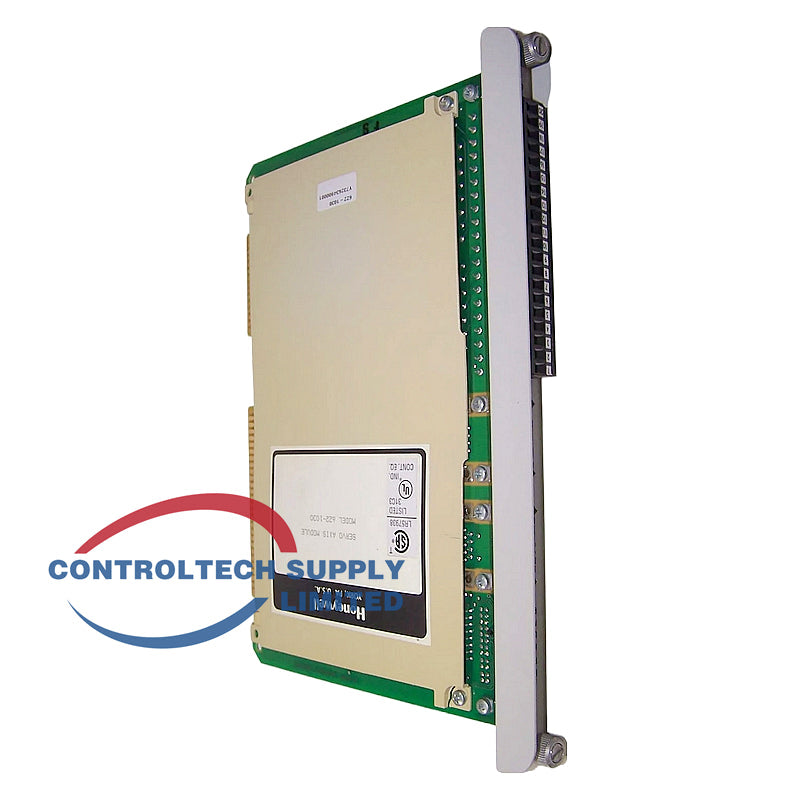

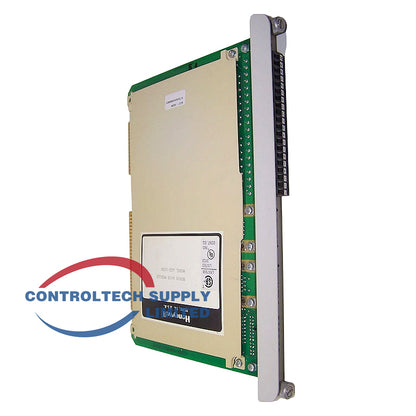

622-1043 Honeywell | Servo PTP Multi-Axis Control Module

Product Overview

Honeywell 622-1043 is a Servo Point-to-Point (PTP) Control Module designed for synchronous multi-axis motion control. It supports precise positioning applications in robotics, packaging, CNC and automated assembly systems.

Technical Specs

• Type: Servo PTP Control Module / Control Card
• Control mode: Synchronous point-to-point multi-axis
• Interfaces: Encoder and amplifier I/O supported
• Power: 24 V DC class
• System: Honeywell motion / specialized control platforms
• Form factor: Industrial control module

Key Features

• Synchronous multi-axis point-to-point motion
• Encoder feedback support
• Suitable for high-precision positioning tasks
• Industrial-grade construction for continuous operation

FAQ

• Function? Servo point-to-point motion control.
• Axes? Multi-axis synchronous control.
• Feedback? Encoder interface supported.

Installation Guide

1. Install the module in the appropriate chassis or mounting location.
2. Connect encoder feedback and servo amplifier interfaces.
3. Wire 24 V DC power and any communication links.
4. Configure motion parameters and axis mapping.
5. Test positioning accuracy and synchronization.

Selection Tips

• Select for multi-axis PTP servo applications.
• Confirm encoder and amplifier compatibility.
• Useful in specialized motion-control upgrades or spares.
