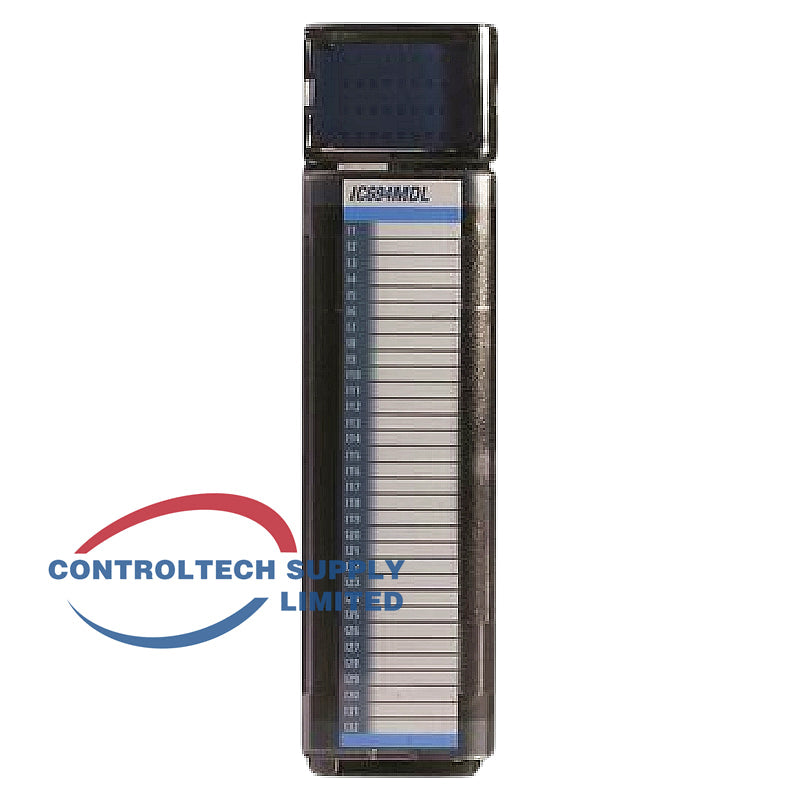

32ch 12/24VDC Discrete Output IC694MDL758 GE RX3i ESCP

Product Overview

GE IC694MDL758 is a 32-point 12/24 V DC positive-logic discrete output module for PACSystems RX3i. Outputs are arranged in two isolated groups of 16 with electronic short-circuit protection (ESCP) per group.

Technical Specs

• Channels: 32 outputs (2 groups of 16)
• Voltage: 12/24 V DC positive logic (10.2–28.8 V DC)
• Current: 0.5 A per point, 8 A per group class
• Protection: Electronic short-circuit protection (ESCP) per group
• Response time: 0.5 ms class
• Terminal blocks: IC694TBB032 / IC694TBS032 (ordered separately)
• System: PACSystems RX3i

Key Features

• High-density 32-point DC output
• Electronic short-circuit protection per group
• Field power loss and ESCP fault reporting
• Status and fault LEDs for rapid diagnostics

FAQ

• Channels? 32 DO (2 × 16).
• Voltage? 12/24 V DC.
• Protection? ESCP per group.

Installation Guide

1. Install the module in an RX3i I/O slot.
2. Mount the matching 32-point terminal block.
3. Connect field power and loads for each group.
4. Configure addresses and monitor ESCP status.
5. Test outputs and fault recovery under load.

Selection Tips

• Ideal for high-density DC output with short-circuit protection.
• Order terminal block separately.
• Useful spare for RX3i 32-point DC output applications.
