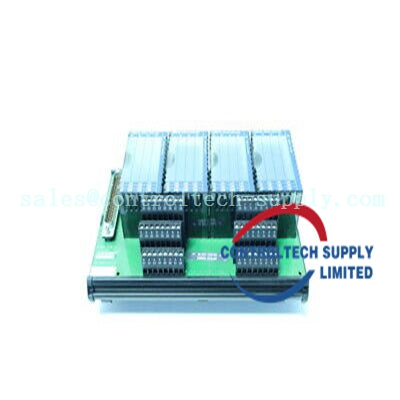

FOXBORO FBM242 P0916NG Externally Sourced Discrete Output Module

Product Description

The FOXBORO FBM242 P0916NG is an Externally Sourced Discrete Output Module designed for industrial automation applications. It provides 16 discrete output channels, each capable of handling externally sourced power for industrial control systems. The module is part of the Schneider Electric I/A Series and is used for interfacing control processors with field devices.

Technical Specifications

• Output Channels: 16 discrete outputs

• Supported Output Voltages:

• 15 to 60 V DC

• 120 V AC / 125 V DC

• 240 V AC

• Maximum Load Current: 2.25 A per channel

• Inrush Current:

• 8 A (max) for 20 ms per channel at 30°C

• 6.4 A (max) for 20 ms per channel at 70°C

• Off-State Leakage Current: 0.1 mA (max)

• On-State Voltage Drop: 0.2 V (max) at 2.25 A

• Communication: Redundant 2 Mbps Module Fieldbus

• Power Requirements:

• Input Voltage Range (Redundant): 24 V DC (+5%, -10%)

• Power Consumption: 3 W (max)

• Environmental Rating: Suitable for Class G3 (harsh environments)

• Isolation: Each channel is galvanically isolated from other channels and ground

• Dimensions:

• Height: 10.2 cm

• Width: 11.4 cm (including mounting lugs)

• Depth: 4.5 cm

• Shipping Weight: 2 kg
