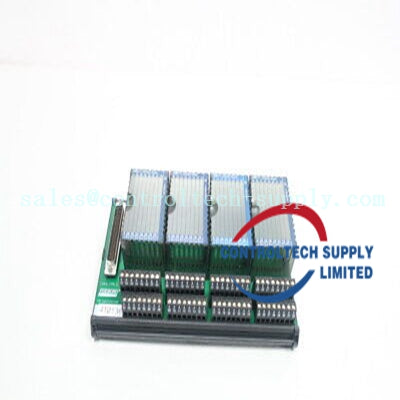

FOXBORO FBM217 P0916PW Discrete Input Interface Module

Product Description

The FOXBORO FBM217 P0916PW is a Discrete Input Interface Module designed for industrial automation applications. It provides 32 isolated input channels, each capable of receiving a 2-wire input from a DC voltage source. The module is part of the Schneider Electric I/A Series and is used for signal conversion between field sensors and the Module Fieldbus.

Technical Specifications

• Input Channels: 32 discrete inputs

• Supported Input Voltages:

• 15 to 60 V DC

• 120 V AC / 125 V DC

• 240 V AC

• Input Current: 2.2 mA (typical) at 30 V DC

• Communication: Redundant 2 Mbps Module Fieldbus

• Power Consumption: 3 W (maximum) at 24 V DC

• Redundancy: Supports single or redundant module configurations

• Environmental Rating: Suitable for Class G3 (harsh environments)

• Dimensions:

• Height: 10.2 cm

• Width: 11.4 cm (including mounting lugs)

• Depth: 4.5 cm

• Shipping Weight: 2 kg
