Collection: Bachmann Backplanes

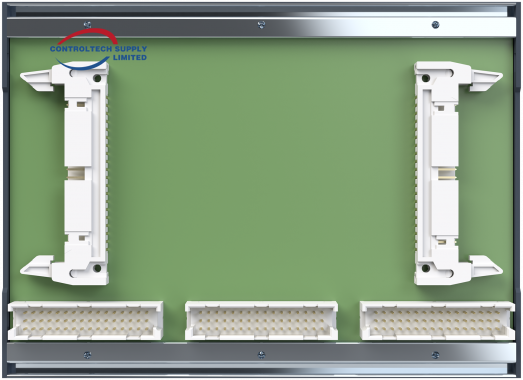

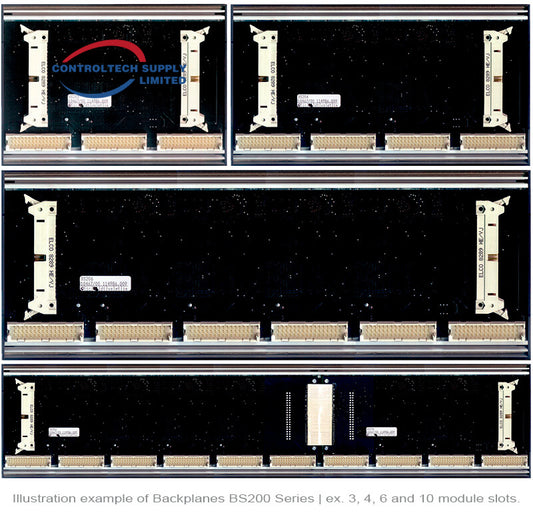

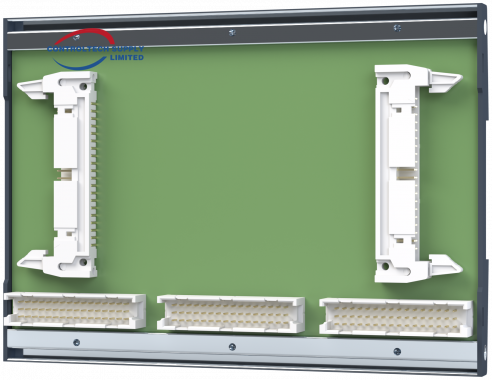

The backplanes BS201 to BS216 interconnect the M1 controller hardware modules, such as power supplies, CPU modules and input/output modules, mechanically and electrically. They are the backbone of the controller. The DIN rail adapters S201 to S205 are mechanically identical in construction, without electrical function and they are used for solitary modules without backplane bus and supply.

Features of Bachmann Backplanes:

  • 1 to 16 module slots
  • Seamless mechanical and electrical connection
  • Sturdy mechanics and compact design
  • Vibration-proof module fixing
  • DIN rail compatibility (EN 60715)
