Why Wire Termination Quality Matters

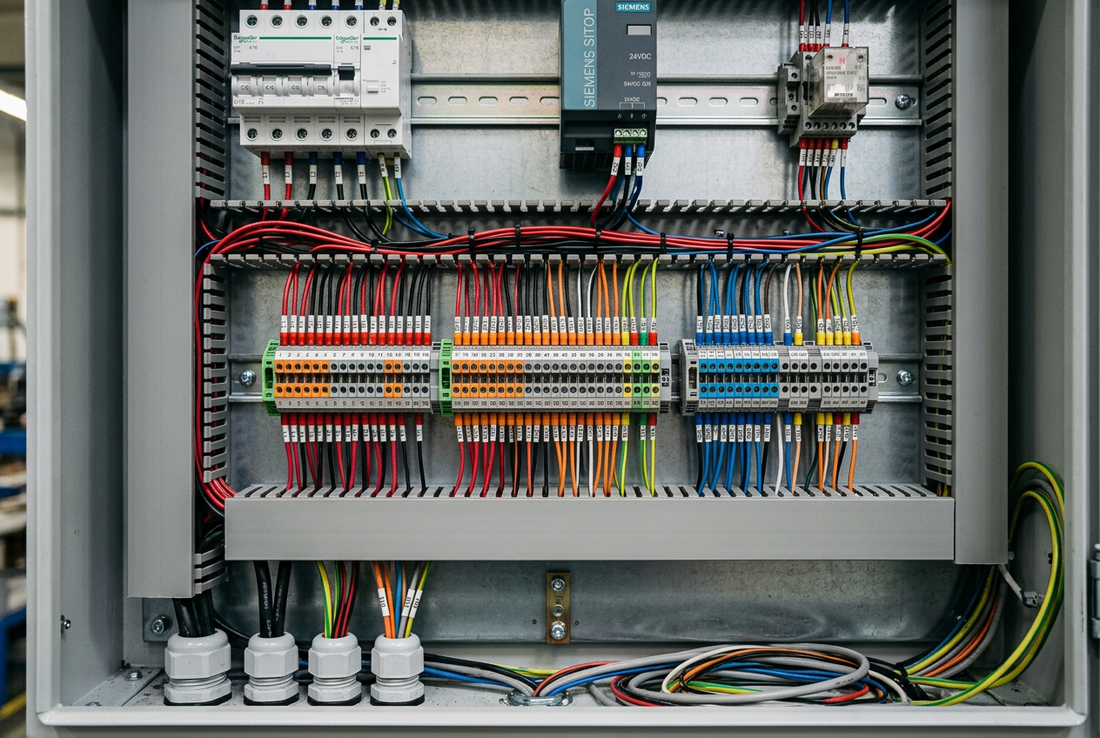

Industrial control panels contain power circuits, control wiring, protective conductors, and communication connections. Each connection must suit the conductor, terminal design, electrical load, and installation environment. A poorly prepared termination can cause intermittent faults, localized heating, voltage drop, or difficult maintenance.

Wire termination should therefore be treated as an engineering requirement, not merely an assembly task. The selected method must comply with the applicable product instructions, panel construction requirements, and local electrical regulations.

Match the Conductor to the Terminal

Before wiring begins, confirm the terminal's approved conductor material, wire-size range, conductor class, and permitted number of conductors. A terminal designed for copper conductors should not be assumed suitable for aluminum. Similarly, a terminal that accepts one conductor may not permit two conductors under the same clamp.

Review the terminal manufacturer's installation instructions for stripping length, tightening torque, and approved accessories. Excessive tightening can damage a terminal or conductor. Insufficient tightening can create a connection with excessive resistance.

• Verify conductor cross-section and material.
• Use the specified stripping length.
• Apply the manufacturer's required tightening torque.
• Keep insulation out of the electrical contact area.
• Confirm that no conductor strands are cut or displaced.

Choose the Appropriate Termination Method

Screw-clamp and pressure terminals

These terminals use mechanical pressure to establish electrical contact. Their performance depends on correct conductor preparation, compatible wire size, and proper tightening. Standard options such as the Schneider BMXFTB2010 screw clamp terminal block provide secure connections when tightened to specification. Follow the terminal's instructions when deciding whether ferrules or crimped lugs are required or permitted.

Spring-clamp and push-in terminals

Spring-based terminals can reduce installation time and provide consistent clamping when used within their specified limits. Solutions such as the Schneider BMXFTB2820 removable spring terminal block and BMXFTB2800 cage clamp terminal block deliver reliable vibration resistance in active industrial environments. Check whether the terminal accepts solid wire, stranded wire, or stranded wire with a ferrule. Do not assume that every push-in design supports the same conductor types.

Ring and fork terminals

Crimped terminals can provide a convenient connection to studs or screw terminals, often deployed on specialized I/O or relay blocks like the GE IC660TBR101 terminal assembly. Select the correct lug size, conductor range, and crimping tool. For vibration-prone applications, verify that the terminal geometry and retention method meet the equipment requirements.

Wire ferrules

Ferrules help contain fine strands and create a more uniform conductor end. However, they change the conductor's effective diameter and must be compatible with the receiving terminal. Use the specified crimp profile and avoid inserting a ferrule where the terminal manufacturer prohibits it.

Design for Inspection and Maintenance

Connections should remain accessible for inspection and servicing. Arrange terminal blocks so technicians can identify circuits, isolate equipment, and replace components without disturbing unrelated conductors. Keep protective-earth connections clear and follow the panel design's grounding and bonding requirements.

Wire markers, drawings, terminal plans, and consistent color conventions help reduce maintenance errors. Update these records whenever field modifications change the actual wiring.

Panel Wiring Inspection Checklist

1. Check terminal ratings against conductor size and material.
2. Inspect stripping length, ferrules, and crimped lugs.
3. Verify tightening torque where specified.
4. Check conductor routing, separation, and mechanical support.
5. Confirm protective-earth continuity and circuit identification.
6. Record inspection results and update the as-built drawings.
