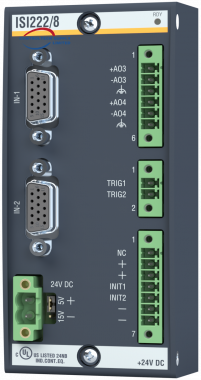

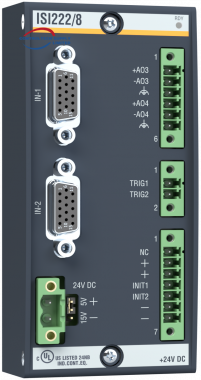

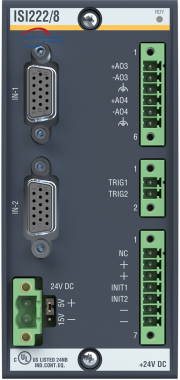

The BACHMANN ISI222 module is designed especially for advanced motion control applications, offering a combination of compact equipment and optimal precision. It is equipped for controlling two motion axes, and it includes various encoder interfaces for acquiring positions, analog outputs for manipulating variables, and digital inputs for initiators or triggers. Additionally, due to the central communication concept, it can incorporate all I/Os of the rest of the M1 system into motion control (e.g., limit switches). It supports input frequencies up to 8 MHz and features integrated synchronization (IO-Bus-Sync) with the entire system for highly dynamic and precise movements.
In addition to full compatibility with well-established controller modules like M-SMC, M-CNC, and M-SHAFT, users can utilize the extensive integrated functions of the module for their own programs and custom control tasks through the familiar standard interfaces (SVI, MIO). The module includes comprehensive integrated error monitoring, continuously checking encoder resolution to identify subtle wiring or ESD issues, making it suitable for operation in challenging environmental conditions.
Features:
- 2 input channels for incremental and SSI encoders
- Full 32-bit counter
- 2 analog outputs (14-bit resolution)
- 4 fast digital input channels for initiators and triggers
- Position measurement and storage can be initiated via triggers, including zero pulse, speed, and more
- Synchronization through SYNC/PreSYNC
- Encoder supply via the module
- Monitoring of the encoder voltage
- Wire break monitoring for encoders
- Two incremental encoder inputs (INC/SSI) with a maximum frequency of 1 MHz
- 32-bit position counters
- RS422 interface for communication with a host controller
- Two analog outputs (±10V, 14-bit resolution, 0.025% accuracy) for controlling two motion axes
- Gate time, period, and velocity measurement
- Encoder supply voltage selection (5V, 15V, or 24V)
- Four digital inputs (24V) for triggering and homing
- PreSYNC output for synchronization with other devices
