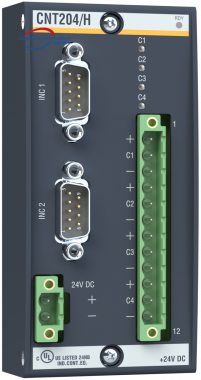

The BACHMANN CNT204/H counter module includes four counters for single-line pulse generators, and it offers the option to use two of these channels as inputs for incremental encoders.
Features:
- 4 counter inputs for single-line pulse generators
- Status indication: LED (green) per counter/initiator input
- 2 input channels for incremental encoders
- Encoder power supply directly from the module via the connectors
- Inputs can be synchronized
- Monitoring of all supply voltages
- Period measurement with 42 ns resolution
- Differential measurement (phase shift between C1 and C3 or C2 and C4) with 42 ns resolution
Technical Specifications:
| Name | Description |
|---|---|
| Brand | BACHMANN |
| Product Name/Model | CNT204/H |
| Item No. | 00010709-10 |
| Function | Counter module |
| Counting Inputs | - 2x INC HTL 300kHz - 2x counter HTL 20kHz or 4x counter HTL 20kHz |
| Voltage/Signal Level | HTL=24V |
| Resolution | 32-bit |
| Supported Counting Modes |
- INC A, A/B/N: Incremental counting with support for A, A/B, and N channels. - Position: Likely referring to position-based counting. - Phase-difference: Measuring the phase difference between signals. - Period: Likely referring to period measurement. - Trigger: Likely referring to trigger-based counting. |
| Isolation | Isolated |
Additional Details:
Incremental Encoder Inputs:
- Quantity: 2
- Counter Resolution: 32-bit
- Input Signals: A-, A+, B-, B+, N-, N+
- Signal Evaluation: 1- / 2- / 4-edge evaluation or pulse direction mode
- Max. Input Frequency: 1 MHz (RS422) / 300 kHz (HTL)
- Input Filter: 185 kHz to 6 MHz adjustable, default 6 MHz
Counter Inputs:
- Quantity: 4 (2 if INC inputs are used)
- Counter Resolution: 32-bit
- Max. Input Frequency: 20 kHz
- Min. Pulse Length: 25 µs
- Input Filter: 183 Hz to 46.88 kHz adjustable, default off (fg=100 kHz)
Encoder Power Supply:
- Voltage: +5 V or +24 V
- Voltage Tolerance: ±5% like Uext
- Max. Current/Encoder: 200 mA (for +5 V) or 300 mA (for +24 V)
- Ripple: < 150 mVss like Uext
- Short Circuit Proof: Yes, permanent
External Power Supply:
- Power Supply: 18 to 34 VDC
- Current Consumption Internal: 40 mA at 24 V + 1.2x current consumption of the encoders
- Reverse Polarity Protection: Yes
Approvals/Certificates:
- General: CE, cULus, CCC
- Marine: DNV GL, LR, ABS, BV
Ambient Conditions:
- Standard or Cold Climate
Operating Temperature:
- Range: -30 to +60 °C
Relative Humidity:
- Operation: 5 to 95% without condensation or 5 to 95% with condensation
- Storage: 5 to 95% with condensation
Pollution Degree:
- 2 (without condensation; according to IEC 60664-1)
These specifications detail the features, inputs, power supply requirements, and environmental conditions for the CNT204/x module.
