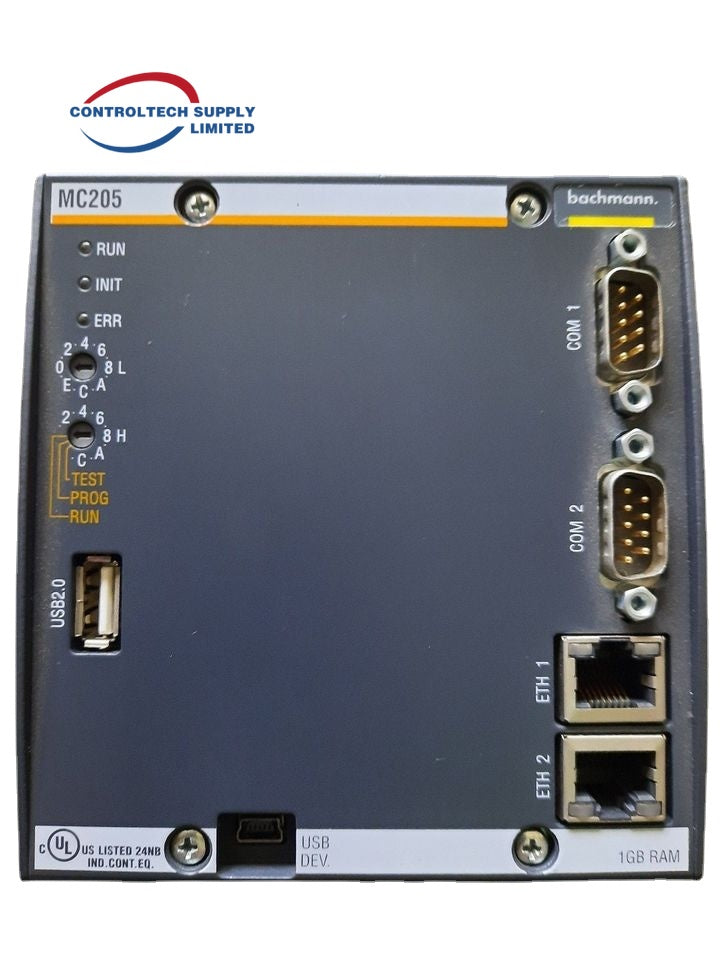

BACHMANN MC205 is part of the MC200 series high-performance processor modules, featuring powerful performance for demanding applications with the M1 controller. It is equipped with two CPUs based on the latest embedded ATOM technology, making it suitable for high-performance control, process control, signal processing, and a wide range of communication protocols. This device features a rugged and durable design with advanced technology, a compact structure, and a long lifespan, capable of operating in a temperature range from -30°C to +60°C.
Additionally, it has an integrated independent process image controller, which significantly reduces the load on the processor and I/O bus. This allows for rapid data transfer rates between input/output terminals, suitable for the fastest processing cycles, with the ability to perform fast single access for precise control tasks and adjustment tasks. It features two independent gigabit Ethernet interfaces (including IEEE-1588 hardware support) for efficient networking and advanced fieldbus communication.
The built-in CFast card offers the fastest access speed through advanced SATA (Serial Advanced Technology Attachment) technology. With non-volatile memory capacity of 512 kB, it serves as a drive and can securely store machine data for over 10 years without external power or batteries.
Technical Specifications:
- 2 serial interfaces
- 1 USB 2.0 Host interface
- USB device maintenance interface
- 2 gigabit Ethernet interfaces 10/100/1000 Mbit/s with IEEE 1588 protocol
- Process image controller
- 1 GB DRAM DDR2
- Non-volatile data storage of 512 kB
- Built-in CFast card with large storage capacity
- Built-in 64 MB program storage
Processor + Memory
- CPU: 600 MHz ATOM E620
- I/O bus: Process image controller
- CFast (large storage): 1 x built-in (side access) / > 8 GB
- Memory: 1 GB DRAM DDR2
- NV-RAM (data storage): 512 kB
- Built-in flash memory (program storage): 64 MB available space for user programs
Interfaces
- Serial: 1x RS232 + 1x RS232/422/485 (parameter settings can be configured via software)
- Ethernet: 2x 10/100/1000 Base-T with IEEE 1588 protocol
- USB Host: 1x USB V2.0
- Maintenance USB interface: 1 USB device
Other Features
- Watchdog
- Synchronous pulses for I/O bus, fieldbus SERCOS and CAN, and Ethernet
- Real-time clock with battery backup
- Status indication through 3 LEDs
- CPU-ID can be set through hexadecimal switches
- Operating system: VxWorks with BACHMANN system extensions in the built-in flash memory
Environmental Conditions
- Standard or cold climate
- Operating temperature: -30 to +60°C (fanless)
- Relative air humidity during operation: 5 to 95% without condensation or 5 to 95% with condensation
- Storage temperature: -40 to +85°C
- Relative air humidity during storage: 5 to 95% without condensation or 5 to 95% with condensation
Product Variants:
- MC205 00018805-10
- MC205 CFA4GB 00018805-12
- MC205-1G/0GB CFA 00018805-10 CPU ATOM E620 (600MHz); 1GB DRAM, 512kB nvRAM; 64MB File-Flash; 2x 10/100/1000 Ethernet; 1x RS232; 1x RS232/422/485; 1x USB2.0; 1x USB2.0 device; CFast-Slot
- MC205-1G/0GB CFA CC 00020513-10 Same as MC205-1G/0GB CFA; cold climate version
- MC205-1G/4GB CFA 00018805-12 CPU ATOM E620 (600MHz); 1GB DRAM, 512kB nvRAM; 64MB File-Flash; 2x 10/100/1000 Ethernet; 1x RS232; 1x RS232/422/485; 1x USB2.0; 1x USB2.0 device; CFast-Slot; 4GB CFast-Card
- MC205-1G/4GB CFA CC 00020513-12 Same as MC205-1G/4GB CFA; cold climate version
