Triconex
110 in stock

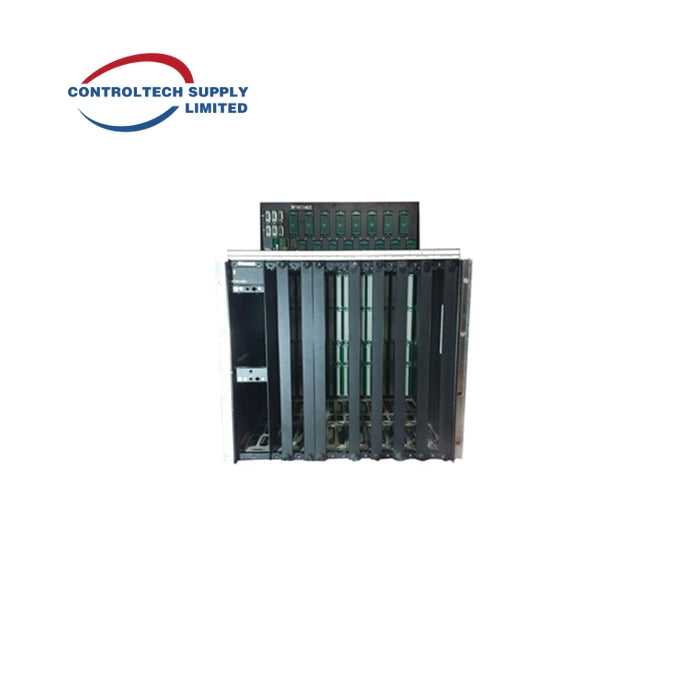

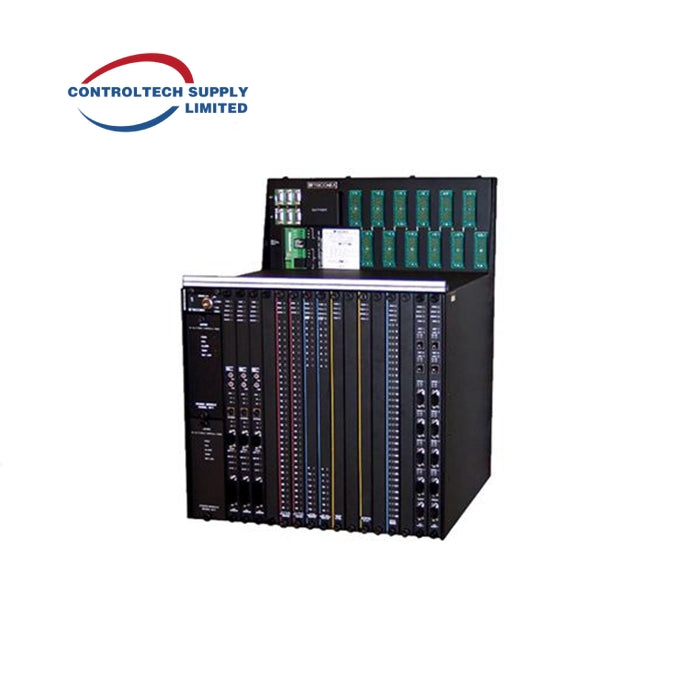

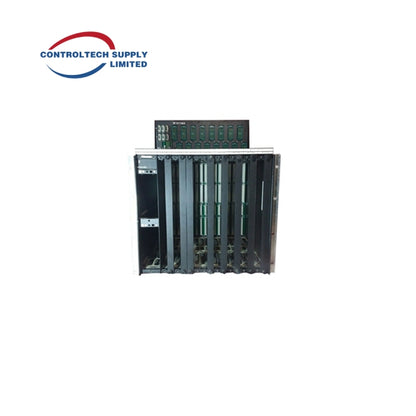

Triconex Model 8111 Expansion Chassis
Triconex Model 8111 Expansion Chassis
Manufacturer: Triconex
Product No.: Triconex 8111
Product Type: Expansion Chassis
Product Origin: USA
Payment: T/T
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Model 8111 Expansion Chassis enables the addition of extra I/O and communication modules to a control system. It features eight logical slots for I/O and communication modules and includes two integrated power modules to supply these slots. Communication modules can only be installed in Expansion Chassis 2. The chassis is suitable for systems where the total I/O bus cable length from the Main Chassis to the last Expansion Chassis does not exceed 100 feet (30 meters), ensuring reliable signal integrity and system performance.
Specifications
| Parameter | Specification |
|---|---|
| Model Number | 8111 |
| Type | Expansion Chassis |
| Number of Slots | 8 logical slots for I/O and communication modules |
| Power Modules | 2 integrated power modules |
| Supported Modules | I/O modules; communication modules allowed only in Expansion Chassis 2 |
| Maximum I/O Bus Cable Length | 100 feet (30 meters) from Main Chassis to last Expansion Chassis |
| Chassis Dimensions (Approx.) | 19 in. rack-mount width, height varies by model, depth ~12 in. |
| Operating Temperature Range | 0 °C to 55 °C (32 °F to 131 °F) |
| Humidity | Up to 95% non-condensing |
| Mounting Type | Rack-mountable, industrial enclosure |
