Bently Nevada
891 in stock

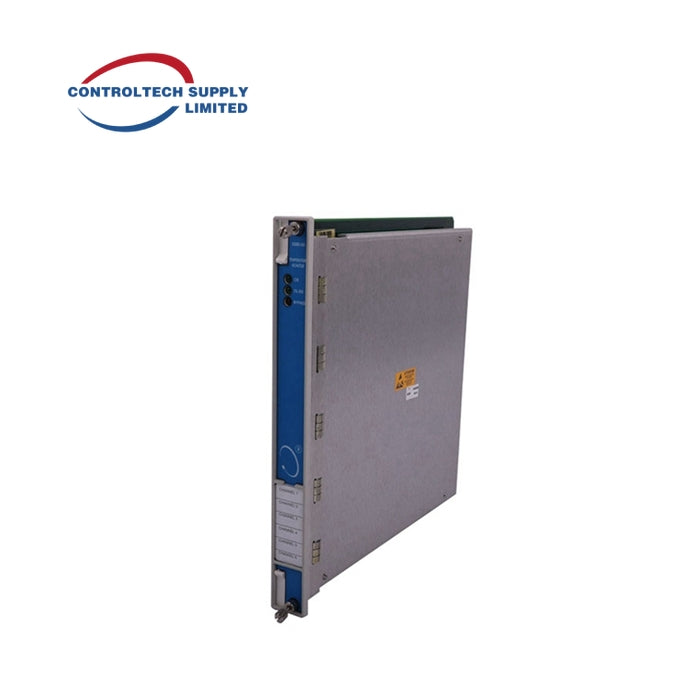

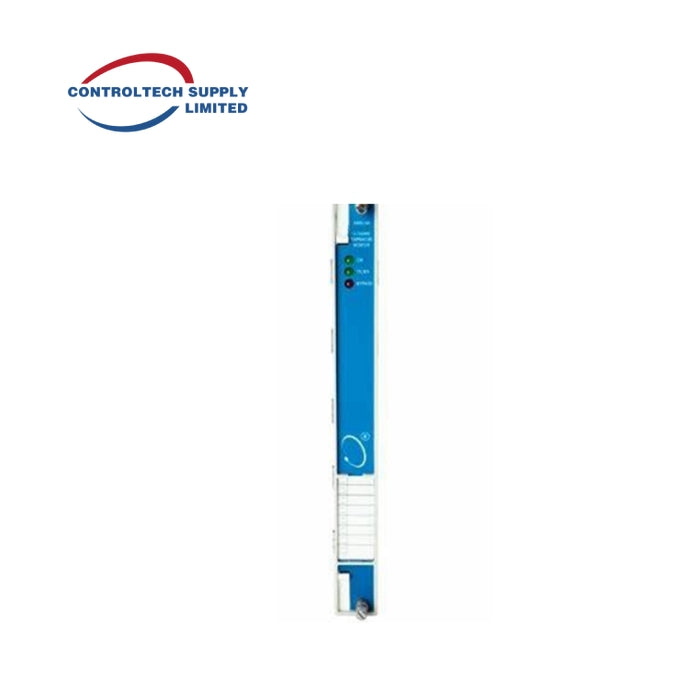

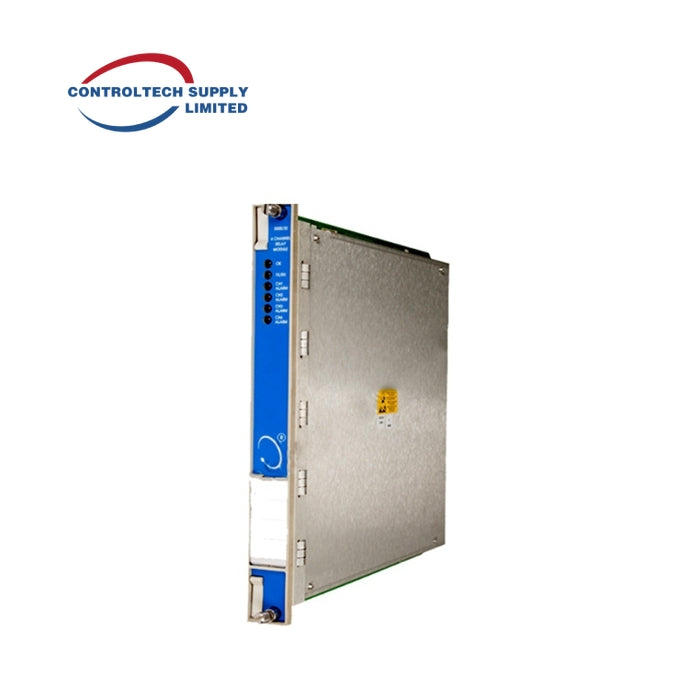

Bently Nevada 3500/32M 149986-02 Spare 4-Channel Relay Control Module
Bently Nevada 3500/32M 149986-02 Spare 4-Channel Relay Control Module
Manufacturer: Bently Nevada
Product No.: 3500/32M 149986-02
Product Type: 4-Channel Relay Control Module
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
149986-02 Spare 4-Channel Relay Control Module
Description
- The 3500/32M 4-Channel Relay Module is a full-height module that provides four relay outputs.
- Any number of these modules can be placed in slots to the right of the Transient Data Interface Module.
- Each output can be independently programmed to perform voting logic.
Physical Characteristics
Main Module
- Dimensions (Height x Width x Depth): 241 mm x 24.4 mm x 242 mm (9.50 in. x 0.96 in. x 9.52 in.)
- Weight: 0.7 kg (1.6 lb.)
I/O Module
- Dimensions (Height x Width x Depth): 241 mm x 24.4 mm x 99.1 mm (9.50 in. x 0.96 in. x 3.90 in.)
- Weight: 0.4 kg (1.0 lb.)
Rack Space Requirements
- Main Module: 1 full-height front slot.
- I/O Modules: 1 full-height rear slot.
Spares
| Part Number | Description |
|---|---|
| 149986-02 | Spare 4-Channel Relay Control Module |
| 125720-01 | Spare 4-Channel Relay Output Module (available for repair only) |
| 125720-02 | Spare 4-Channel Relay Output Module for hazardous area systems and functional safety systems |
| 04425545 | Grounding wrist strap (single use) |
| 00580453 | Connector header, internal termination, 16-position, green |
| 00580436 | Connector header, internal termination, 6-position, green |
| 166M2390 | Connector header, push-in-spring type (alternative for PN 00580436) |
