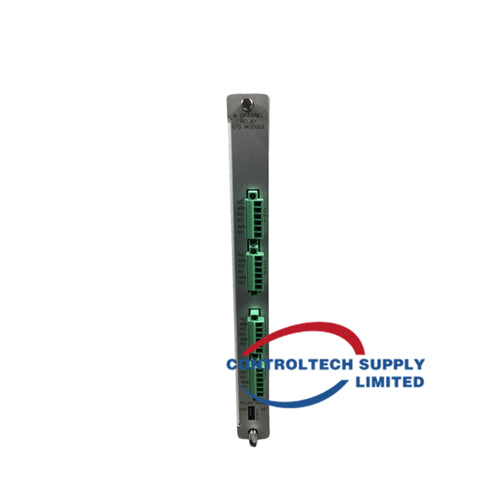

Bently Nevada 3500/32M 125720-01 Spare 4-Channel Relay Output Module

Bently Nevada 3500/32M 125720-01 Spare 4-Channel Relay Output Module

  • Manufacturer: Bently Nevada

  • Product No.: 3500/32M 125720-01

  • Product Type: Relay Output Module

  • Product Origin: USA

  • Payment: T/T

  • Weight: 0g

  • Shipping port: Xiamen

  • Warranty: 12 months

Description Of 3500/32M 4-Channel Relay Module

The 4-Channel Relay Module is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Transient Data Interface Module. Each output of the 4-Channel Relay Module can be independently programmed to perform voting logic.

Physical Characteristics

  • Main Module Dimensions (Height x Width x Depth): 241 mm x 24.4 mm x 242 mm (9.50 in. x 0.96 in. x 9.52 in.)
  • Main Module Weight: 0.7 kg (1.6 lb.)
  • I/O Module Dimensions (Height x Width x Depth): 241 mm x 24.4 mm x 99.1 mm (9.50 in. x 0.96 in. x 3.90 in.)
  • I/O Module Weight: 0.4 kg (1.0 lb.)
  • Rack Space Requirements:
    • Main Module: 1 full-height front slot
    • I/O Modules: 1 full-height rear slot

Spares

Part Number Description
149986-02 Spare 4-Channel Relay Control Module
125720-01 Spare 4-Channel Relay Output Module (available for repair only)
125720-02 Spare 4-Channel Relay Output Module for hazardous area systems and functional safety systems
04425545 Grounding wrist strap (single use)
00580453 Connector header, internal termination, 16-position, green
00580436 Connector header, internal termination, 6-position, green
166M2390 Connector header, push-in-spring type (alternative for PN 00580436)
