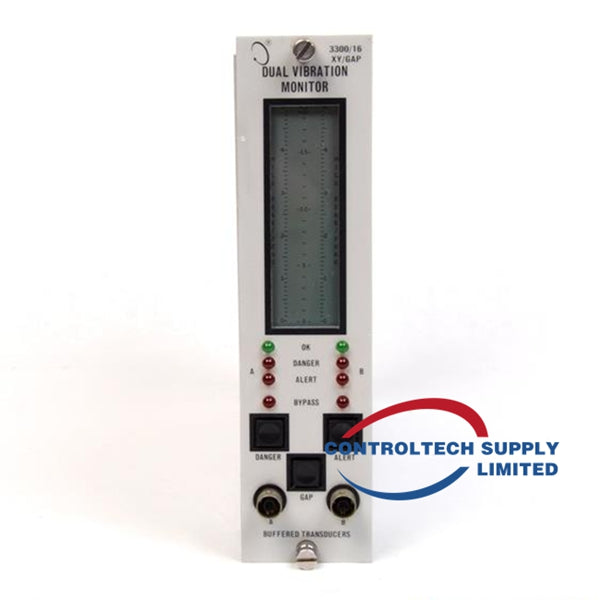

Bently Nevada 3300/16-12-01-02-00-02-00 Dual Vibration Monitor In Stock

Product Description

The Bently Nevada 3300/16-12-01-02-00-02-00 is an XY/Gap Dual Vibration Monitor designed for continuous, real-time monitoring of two independent channels of radial vibration and average shaft position (gap). It is compatible with proximity probe systems, such as the Proximitor® series.

Technical Specifications

• Measurement Range: 0 to 100 µm peak-to-peak (pp)
• Transducer Input Options: 7200, 200 mV/mil
• Alarm Relay Option: Hermetically-Sealed
• Dimensions: 19.8 cm x 16.2 cm x 10.8 cm (7.8 in x 6.4 in x 4.3 in)
• Weight: 1.2 kg (2.6 lbs)
• Power Supply: 24 VDC
• Frequency Response: User-programmable for 4 to 4,000 Hz (240 to 240,000 cpm), or 1 to 600 Hz (60 to 36,000 cpm)
• Output Signal: Analog and digital outputs
• Certifications: CE

Product Features

• Dual Channel Monitoring: Measures radial vibration and average shaft position (gap).
• High Sensitivity: Detects even minor changes in vibration levels.
• Wide Frequency Range: Covers a broad spectrum of frequencies, from low to high.
• Rugged Construction: Built to endure harsh industrial environments.
• Ease of Installation and Operation: Simplifies setup and usage.
