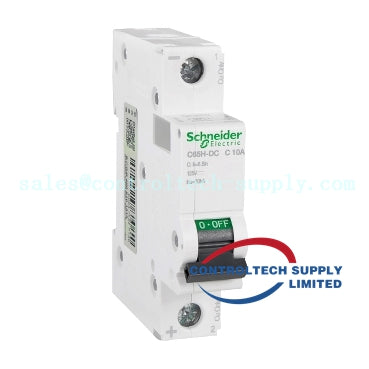

SCHNEIDER C65H-DCC10A Circuit Breaker
SCHNEIDER C65H-DCC10A Circuit Breaker
Manufacturer: SCHNEIDER
Product No.: C65H-DCC10A
Product Type: Circuit Breaker
Product Origin: USA
Payment: T/T
Weight: 220g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Schneider C65H‑DCC10A is a rugged DC miniature circuit breaker (MCB) from Schneider Electric’s Multi 9 C65H-DC series, engineered for low-voltage direct current (DC) protection. It provides reliable overload and short-circuit protection in industrial and renewable-energy DC systems such as photovoltaic arrays, battery storage installations, and DC power distribution panels. Featuring a C-curve thermal-magnetic trip characteristic, it accommodates moderate inrush currents while delivering consistent protective performance. The compact, modular housing enables easy DIN-rail mounting in control cabinets, and high breaking capacity ensures safe interruption of fault currents.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | C65H-DCC10A |
| Product Type | DC Miniature Circuit Breaker (MCB) |
| Series/Range | Multi9 – C65H-DC |
| Poles | 2P (2-pole) |
| Rated Current | 10 A |
| Rated Operational Voltage | 250 V DC (2-pole) |
| Breaking Capacity (Icu) | 10 kA at 250 V DC |
| Tripping Curve | C-curve (thermal-magnetic) |
| Impulse Withstand Voltage (Uimp) | 5 kV |
| Mechanical Endurance | Up to 20,000 operations |
| Electrical Endurance | Up to 10,000 operations |
| Terminal Capacity | 1–25 mm² wiring |
| Mounting Method | Standard 35 mm DIN rail |
| Operating Temperature | –30 °C to +70 °C |
| Dimensions (H × W × D) | 84 × 36 × 73.5 mm |
| Weight | 220 g |
| Compliance Standards | IEC 60947-2, IEC 60898-2 |
| Typical Applications | DC distribution boards, solar PV systems, battery storage, industrial DC panels |
