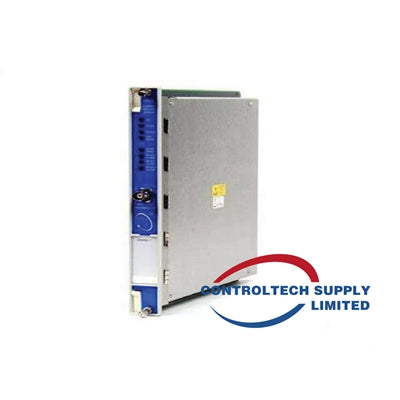

BENTLY NEVADA 146358-01 Proximitor Sensor Interface Module
BENTLY NEVADA 146358-01 Proximitor Sensor Interface Module
Manufacturer: Bently Nevada
Product No.: 146358-01
Product Type: Proximitor Sensor Interface Module
Product Origin: USA
Payment: T/T
Weight: 820g
Shipping port: Xiamen
Warranty: 12 months
Description
The Bently Nevada 3500/40-01 Proximitor I/O Module with Interna (commonly referred to by its part number 146358‑01) is a Proximitor Sensor Interface Module designed for use in the Bently Nevada 3500 Machinery Protection System. It conditions and converts raw signals from eddy‑current proximity probes into calibrated outputs, enabling accurate vibration, shaft position, and displacement monitoring for industrial rotating machinery. The module features rugged construction, low power consumption, and compatibility with redundant system configurations, making it suitable for continuous operation in harsh environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 146358‑01 |
| Product Type | Proximitor Sensor Interface Module |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Input Sensor Type | Eddy‑current proximity probes (5 mm, 8 mm, 11 mm) |
| Calibrated Output (Voltage) | –2 to –18 VDC |
| Calibrated Output (Current) | 4–20 mA |
| Frequency Response | 0–10 kHz (±3 dB) |
| Power Supply | +24 VDC from 3500 backplane |
| Power Consumption | ~2.5 W typical |
| Isolation | 500 VDC channel‑to‑backplane |
| Operating Temperature | 0°C to +65°C (32°F to 149°F) |
| Storage Temperature | –40°C to +85°C (–40°F to 185°F) |
| Module Dimensions | 241 mm × 27 mm × 216 mm |
| Weight | 820 g |
| Mounting | DIN rail inside 3500 chassis |
| Redundancy Support | Supported |
