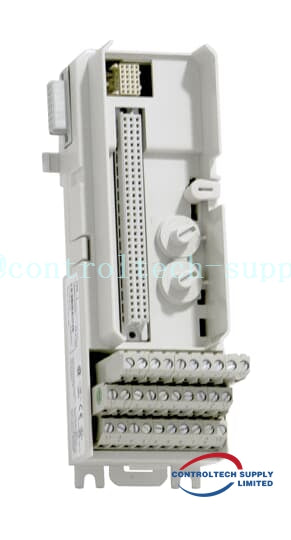

ABB TERM01 Module Termination Unit (MTU)

General Description

• The ABB TERM01 is a compact Module Termination Unit (MTU) for ABB’s S800 I/O system.

• It acts as the connection interface between field signal wiring and I/O modules, enabling secure signal transmission and preventing mechanical mismatches.

• Designed for compact installations, it offers high reliability and compatibility in industrial automation environments.

Technical Specifications

• Type: Module Termination Unit (MTU)

• Voltage Rating: 50 V

• Channels Supported: Up to 16 channels via a 25-pin D-sub connector

• Current Capacity: 2 A per channel, up to 5 A total process connection current

• Connector Type: 25-pin D-sub (male)

• Dielectric Test Voltage: 500 V AC

• Mounting: DIN-rail mountable (horizontal or vertical)

• Operating Temperature Range: 0 °C to +55 °C

• Storage Temperature Range: –40 °C to +70 °C

• Humidity: 5–95 % non-condensing

• Protection Class: IP20

• Pollution Degree: 2 (per IEC 60664-1)

• EMC Compliance: EN 61000-6-4 (emission), EN 61000-6-2 (immunity)

• Certifications: CE, cULus, ATEX, ABS, BV, DNV-GL, LR

• Dimensions: Width 64 mm, Depth 64 mm, Height 170 mm

• Weight:  0.17 kg
