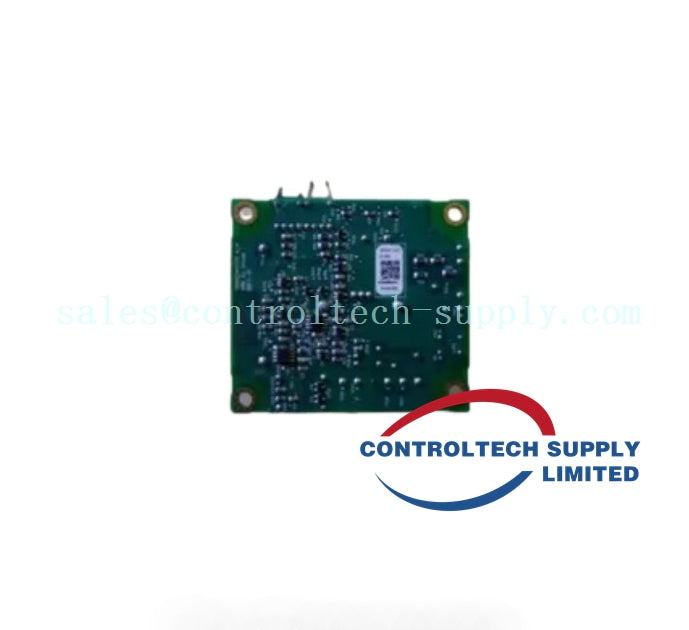

ABB BDFC-01C Control Board
ABB BDFC-01C Control Board
Manufacturer: ABB
Product No.: BDFC-01C
Product Type: Control Board
Product Origin: Sweden
Payment: T/T
Weight: 0g
Shipping port: Xiamen
Warranty: 12 months
General Description
The ABB BDFC-01C is a control board designed for use with ABB drive systems. It functions as a fieldbus communication interface or as a fan control / auxiliary control board. In communication mode, it enables data exchange between ABB drives and external control systems (PLC/DCS) via industrial fieldbus protocols. In fan-control mode, it manages cooling fans for inverters, frequency converters, or control cabinets based on temperature or load, including soft-start and fault detection for fans.
Technical Specifications
| Parameter / Description | Specification / Data |
|---|---|
| Model Name / Part Number | BDFC-01C (also 3AXD50000010454) |
| Product Type | PCB Control Board / Fieldbus Communication Module / Fan Control Board |
| Application / Function | • Fieldbus communication for ABB ACS drives • Fan control / cooling-fan management / auxiliary control for drives / control cabinets |
| Supported Drives / Systems | ABB ACS series (e.g., ACS800, ACS880) |
| Supported Communication Protocols | Fieldbus protocols such as PROFIBUS-DP, DeviceNet, CANopen (depending on configuration) |
| Power / Supply | Powered internally from the drive system (no separate supply required) |
| Mounting / Form Factor | Plug-in module for drive expansion slot or appropriate slot inside drive cabinet |
| Environmental / Operating Conditions | Operating temperature: –10 °C to +50 °C |
| Module Origin | Sweden |
