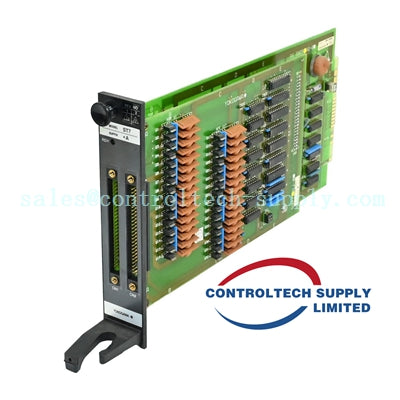

YOKOGAWA ST7*A Multipoint Status Output Card

The YOKOGAWA ST7*A Multipoint Status Output Card is designed for industrial automation systems, providing multiple relay output points to monitor and control field devices such as magnetic valves and motors. It integrates seamlessly with Yokogawa’s CENTUM-XL and µ-XL systems, ensuring reliable status indication and efficient process control.

Technical Specifications

• Model: ST7*A

• Type: Multipoint Status Output Card

• Output Channels: Multiple relay output points for status indication

• Output Type: Relay contacts (Normally Open, Normally Closed, Form-C)

• Power Requirements:

• 24 V DC ±10%

• 85–132 V AC or 170–264 V AC (depending on the mounting nest type)

• Mounting: Compatible with both horizontal and vertical mounting nests (RYH-32, RYV-11)

• Connection: Uses a block connector cable for DCS integration

• Operating Temperature: -10°C to +55°C (14°F to 131°F)

• Dimensions: 220 mm x 210 mm x 80 mm

• Weight: 1.19 lbs (0.54 kg)
