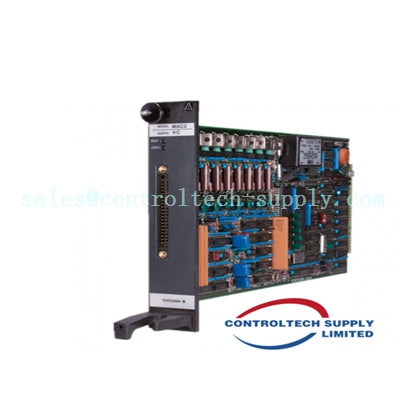

YOKOGAWA MAC2*C Analog I/O Module

Product Description

The YOKOGAWA MAC2*C Analog I/O Module is a high-performance signal conditioner module designed for integration with Yokogawa DCS systems. It ensures precise signal processing and reliable operation, making it ideal for industrial automation applications.

Technical Specifications

• Model: MAC2*C

• Type: Signal Conditioner Module

• Power Supply:

• Input Voltage: 24 V DC ±10%

• Insulation Resistance:

• 100 MΩ or more at 500 V DC (between input, output, power supply, ground, and CN1-CN2)

• Withstand Voltage:

• 1500 V AC/min (between input and output, power supply, ground, CN1-CN2)

• 500 V AC/min (between output, power supply, ground, CN1-CN2)

• Operating Conditions:

• Temperature Range: 0 to 50°C

• Humidity Range: 5 to 90% RH (no condensation)

• Signal Processing:

• Analog Input/Output: 8 points per channel

• Compatible with FIO modules of CENTUM VP/CS3000

• Mechanical Specifications:

• Weight: Approx. 3.8 kg

• Mounting Method: Rack or wall mounting (horizontal orientation only)

• Mounting Screws: M5 screws × 4

• Connectivity:

• Terminal Type: M4 screw terminals for I/O signals

• Shield Connection: M3 screw terminal for I/O cable shield

• Communication Terminals: RS-485 interface
