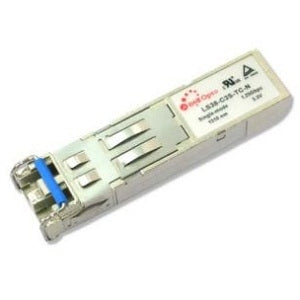

YOKOGAWA LS38-C3S-TI-N-GD Fiber Optic Transceiver Module

Product Description

• High-speed fiber optic transceiver module for industrial communication

• Designed for single-mode fiber with long-distance transmission up to 10 km

• Compact SFP form factor for easy integration into control systems

• Operates reliably in harsh environments with wide temperature tolerance

• Manufactured in Japan, compliant with RoHS environmental standards

• Ideal for use in Yokogawa’s industrial automation networks

Technical Specifications

• Model: LS38-C3S-TI-N-GD

• Data Rate: 1063 to 1250 Mb/s

• Wavelength: 1310 nm

• Transmission Distance: Up to 10 km (single-mode fiber)

• Output Power: -9.5 to -3 dBm

• Receiver Sensitivity: -20 dBm

• Link Budget: Approx. 10.5 dB

• Saturation Power: -3 dBm

• Connector Type: LC Duplex

• Fiber Core/Cladding: 9/125 µm

• Transmitter: Fabry-Perot (FP) Laser Diode

• Receiver: PIN Photodiode

• Supply Voltage: 3.3 V nominal

• Current Consumption: Up to 250 mA

• Operating Temperature: -40°C to +85°C

• Storage Temperature: -40°C to +85°C

• Compliance: RoHS
