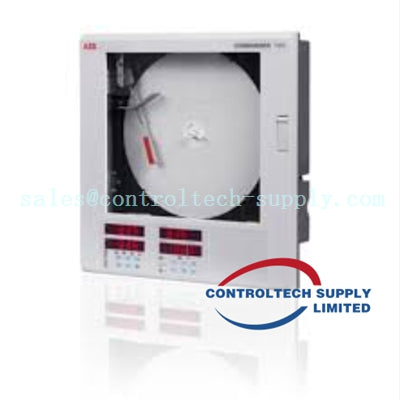

ABB IM/C1900R-Q C1900 Series Circular Chart Recorders

Product Description

The ABB IM/C1900R-Q is a remote version of ABB’s robust C1900 series circular chart recorders. Designed for continuous monitoring and recording of critical process variables—such as temperature, pressure, or flow—the unit supports remote signal input, making it suitable for installations where the sensor or transmitter is located far from the recording site. The "R" denotes remote capability, while the "Q" indicates a specific configuration or option set related to measurement range, input type, or firmware variant.

Technical Specifications

• Model Number: IM/C1900R-Q

• Recorder Type: Circular Chart Recorder – Remote Input Variant

• Chart Size: 10 inches (250 mm) diameter

• Number of Channels: 1 or 2 pen recording (independent inputs)

• Supported Inputs:

• Remote 4–20 mA analog signals

• RTDs: Pt100 (3-wire remote sensing)

• Thermocouples: J, K, T, R, S types with remote compensation

• 0–10 V, 1–5 V, mV signals

• Measurement Accuracy: ±0.25% of full scale (typical)

• Chart Rotation Speed:

• Configurable from 1 hour to 7 days per chart

• Motor-driven chart mechanism with high repeatability

• Recording Mechanism:

• High-precision ink pen system

• Replaceable ink cartridges for long-term operation

• Power Supply Options:

• 90–264 V AC, 50/60 Hz

• Optional 24 V DC variant

• Environmental Ratings:

• Operating Temperature: 0°C to +50°C

• Storage Temperature: –20°C to +70°C

• Humidity: 10%–90% RH, non-condensing
