Debugging a 4-20 mA Loop Without Killing the Signal: Yokogawa and Emerson Field Notes

Live zero, voltage-drop budgeting, and HART overlay that actually work on the plant floor.

Why 4-20 mA Still Rules the Field

Process control once ran on air. A 3-15 psi signal carried the loop. Below 3 psi, a leak looked like a reading. Live zero fixed that ambiguity. Electronics later copied the idea with current. The 4-20 mA loop became the industry default. It resists noise better than voltage. Current stays identical at every point in a series loop. That single principle makes it robust. A wire drop cannot change the reading. Moreover, 0 mA clearly signals a fault. You can always tell a dead loop from a low measurement. This is why the standard survives every fieldbus fad.

Reading Live Zero and Fault Current Correctly

Do not treat current as a raw number. Treat it as a message. The value tells you the state, not just the measurement. Use these bands as your decoder.

• Step 1 — 4 mA means a valid zero. The sensor reads its low range. The loop is healthy.
• Step 2 — 20 mA means a valid full scale. The sensor reads its high range. The loop is healthy.
• Step 3 — Below 3.6 mA is a down-scale fault. A broken wire or a starved transmitter lives here.
• Step 4 — Above 21 mA is an up-scale fault. Check for a shorted input or a failing element.
• Step 5 — 22 to 23 mA is a burn-up alarm. The transmitter signals an internal failure. On a Yokogawa EJA110A, this points to sensor or electronics trouble.

Budget Your Voltage Drop with Ohm's Law

Every loop element either supplies voltage or consumes it. The current is constant, so drop scales with resistance. Apply V = I x R across the whole series path. If the transmitter cannot see its minimum terminal voltage, it starves and reads low. That single math step prevents half your phantom faults.

• Step 1 — Note your supply. A typical loop uses a 24 V DC source.
• Step 2 — List the loads. Add the analog input, the isolator, and any data logger in series.
• Step 3 — Sum the resistances. Say the AI is 250 ohms and wiring is 15 ohms.
• Step 4 — Compute drop at 20 mA. With 265 ohms, V = 0.020 x 265 = 5.3 volts.
• Step 5 — Check the margin. A Rosemount 3051 needs about 10.5 V at the terminals. Keep headroom over the worst case.
• Step 6 — Size wiring for the worst case. Long runs add copper resistance; do not ignore it.

Overlay HART Without Breaking the Analog

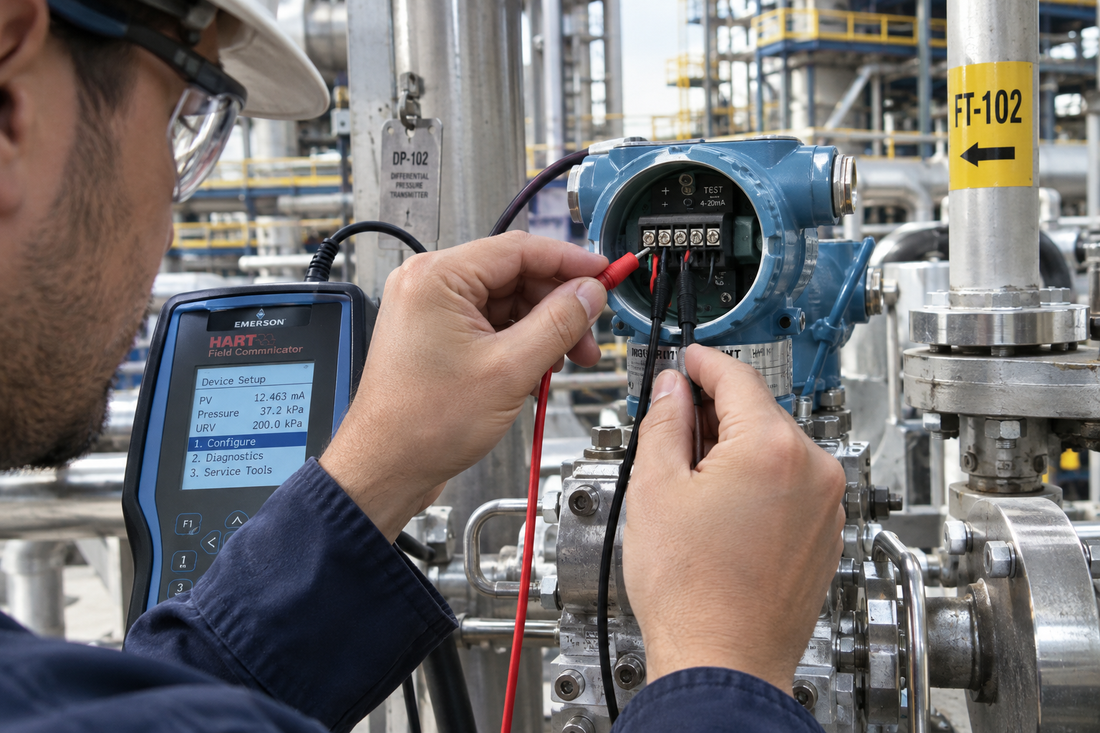

HART adds digital data on the same two wires. It rides as a small audio-shift keying signal on top of 4-20 mA. The average current is unchanged. Therefore your analog reading stays valid. However, HART needs a minimum loop resistance, usually 230 ohms, to pass the signal. First, confirm your budget already includes that resistor. Second, connect the HART modem across the load, not in series. Moreover, use the handheld to read device status and PV simultaneously. A Yokogawa transmitter exposes loop test, sensor temperature, and DAMP via HART commands. An Emerson 3051 returns diagnostic codes the analog pin never shows.

• Step 1 — Verify the 230-ohm minimum before enabling a field HART master.
• Step 2 — Run device self-test; watch for a FIXED CURRENT or SIMULATED PV flag.
• Step 3 — Record primary variable and loop current together; a mismatch reveals drift.

Conclusion & Action Advice

The 4-20 mA loop rewards methodical hands. First, read current as a state message, not just a number. Second, budget every volt so your transmitter never starves. Moreover, let HART reveal the fault the analog wire hides. However, never assume a "0 mA" wire is dead; a forced down-scale can imitate it perfectly. Therefore, decode against the NAMUR bands before you cut power. Finally, keep a laminated voltage-drop sheet in every job box. Trust the constant-current principle, and most loop ghosts vanish. Diagnose in mA, confirm in HART, and the field becomes predictable.

---

Author: Li Guoqiang is an industrial automation engineer with over 10 years of experience in PLC, DCS, and control systems.
