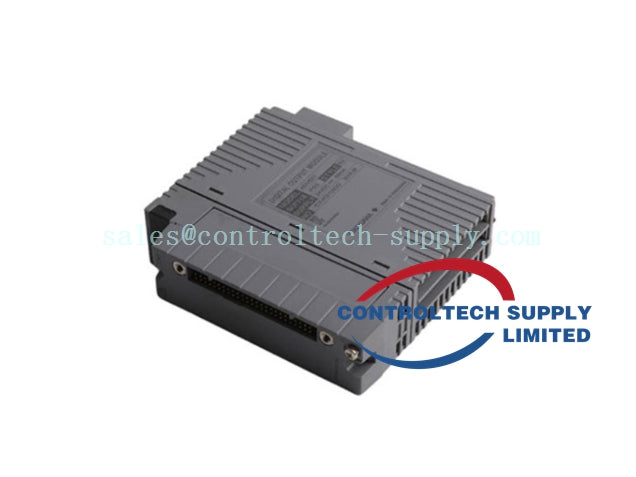

YOKOGAWA ADV551-P63 Digital Output Module
YOKOGAWA ADV551-P63 Digital Output Module
Manufacturer: YOKOGAWA
Product No.: ADV551-P63
Product Type: Digital Output Module
Product Origin: Japan
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The YOKOGAWA ADV551-P63 Digital Output Module is a 32-channel, 24 V DC isolated digital output module designed for use in Yokogawa control systems.
It supports pulse width output and time-proportional output functions.
This model integrates the ISA Standard G3 option and extended temperature capability (-20 °C to 70 °C), making it suitable for harsh industrial environments.
Digital Output Module Codes
| Type | Code | Description |
|---|---|---|
| Model | ADV551 | Digital Output Module (32-channel, 24 V DC, Isolated) |
| Suffix | -P | With pulse width output function / time-proportional output function |
| 5 | Without status display; with no explosion protection | |
| 6 | With status display; with no explosion protection | |
| E | Without status display; with explosion protection | |
| F | With status display; with explosion protection | |
| 0 | Basic type | |
| 3 | With ISA Standard G3 option and temperature (-20 to 70 °C) option | |
| Option | /D5A00 | With KS Cable Interface Adapter for 32-channel Digital [Model: ATD5A-00] |
| /D5S00 | With Pressure Clamp Terminal Block for Digital Output [Model: ATD5S-00] | |
| /D5S10 | With Pressure Clamp Terminal Block for Digital Output (surge absorber) [Model: ATD5S-10] | |
| /D5D00 | With Dual Pressure Clamp Terminal Block for Digital Output [Model: ATD5D-00] | |
| /D5D10 | With Dual Pressure Clamp Terminal Block for Digital Output (surge absorber) [Model: ATD5D-10] | |
| /CCC01 | With Connector Cover for MIL Cable [Model: ACCC01] |
ADV551 Technical Specifications
| Item | ADV551 Specification |
|---|---|
| Number of output channels | 32 |
| Rated applied voltage | 24 V DC |
| External power supply rating | 24 V DC, 50 mA |
| External power supply voltage range | 20.4 to 26.4 V DC |
| Output ON voltage maximum value | 2 V DC |
| Leak current maximum value when output OFF | 0.1 mA |
| Output format | Current sink |
| Maximum load current | 100 mA/channel, 26.4 V |
| Withstanding voltage | Between output signal and system: 2 kV AC, 1 minute; Between commons: 500 V AC, 1 minute; Common minus (–) side every 16-channel |
| Functions – Status output | ON/OFF status output function |
| Functions – Pulse width output | One-shot pulse width output function |
| Functions – Time-proportioning output | Time-proportioning ON/OFF |
| Output response time | 3 ms or less (for status output); 10 ms or less (for mixed status and pulse outputs) |
| Pulse width | 8 ms to 7200 s |
| Pulse width resolution | 8 ms (ON/OFF delay maximum 1 ms added) |
| Maximum current consumption | 700 mA (5 V DC); 60 mA (external power supply) |
| Weight | Approx. 0.20 kg |
| External connection | Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable |
