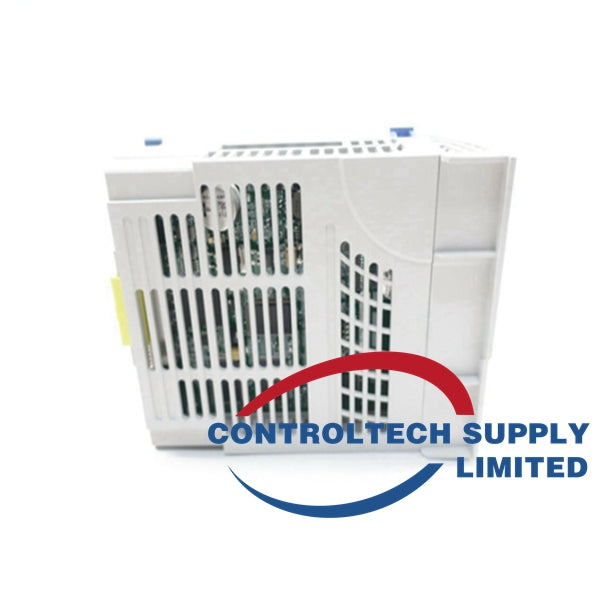

Ovation 5X00605G01 Analog Input Module

Product Description

The Ovation 5X00605G01 is an Analog Input Module designed for Emerson's Ovation control systems. It processes analog signals from field devices, ensuring accurate monitoring and control of critical processes. This module is widely used in power generation, water treatment, oil and gas, and chemical processing industries.

Technical Specifications

• Model Number: 5X00605G01

• Channels: 16 single-ended analog input channels

• Signal Types Supported: 4–20 mA, 1–5 V, or other standard analog signals

• Resolution: 16-bit A/D conversion

• Accuracy: ±0.1% full scale

• Isolation: 1500 V RMS between channels and system ground

• Update Rate: Configurable, up to 10 ms per channel

• Power Requirements: 24 VDC nominal

• Operating Temperature: -20°C to +60°C

• Compliance Standards: CE, RoHS, UL

• Dimensions: 8.9 cm × 5.5 cm × 4.4 cm

• Weight: 2.2 lbs (1 kg)

• Material: Aluminum alloy

• Protection Rating: IP67

• Output Signal: 4–20 mA

• Measurement Range: 0–10,000 PSI

• Overload Capacity: 150% full scale

• Burst Pressure: 200% full scale

• Stability: ±0.2% full scale per year

• Response Time: ≤1 ms

• Display: LCD scree
