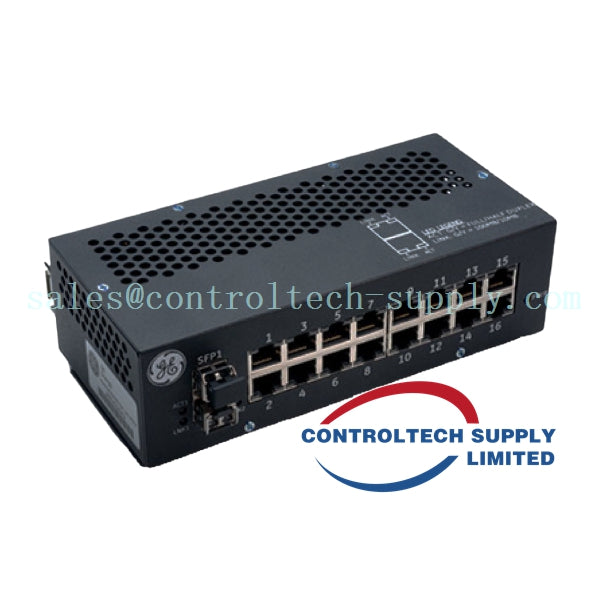

GE IS420ESWBH2A - Ethernet IONet Switch

General Information

• Part Number: IS420ESWBH2A

• Manufacturer: General Electric

• Series: Mark VIe

• Product Type: Ethernet IONet Switch

• Availability: In Stock

• Country of Origin: USA

Functional Description

• The IS420ESWBH2A is an Ethernet IONet Switch developed by General Electric as part of the Mark VIe Series.

• It is specifically designed for use in gas turbine control systems.

• All IONet switches in Mark VIe and Mark VIeS Safety control systems must be GE industrial unmanaged Ethernet 10/100 switches.

• These switches are built to meet the requirements of real-time industrial control applications.

Characteristics

• Standards Compatibility: 802.3, 802.3u, 802.3x

• Network Support: 10/100 base copper with auto-negotiation

• Duplex Modes: Full/half-duplex auto-negotiation

• Uplink Port: 100 Mbps FX uplink

• Port Sensing: HP-MDIX auto-sensing

• LED Indicators: Link presence, activity, duplex, speed (two-color per port)

• Power Status LED: Yes

• Buffer Memory: Minimum 256 KB

• MAC Address Table: 4K entries

• Power Supply Inputs: Redundant (Diode-OR’d)

Features

• Number of Ports: 16 ports, 10/100Base-TX copper, RJ-45

• Power Requirements: 24 / 28 V DC, 1 A max

• Power Connector: Phoenix contact (MC 1.5/S-STF-3.81)

• Dimensions (H x W x D): 18.8 × 8.6 × 5.6 cm (7.40 × 3.40 × 2.20 in)

• Operating Temperature: -40 to 70°C (-40 to 158°F)

• Storage Temperature: -40 to 85°C (-40 to 185°F)

• Mounting Method: DIN-rail mount with separately purchased clip
